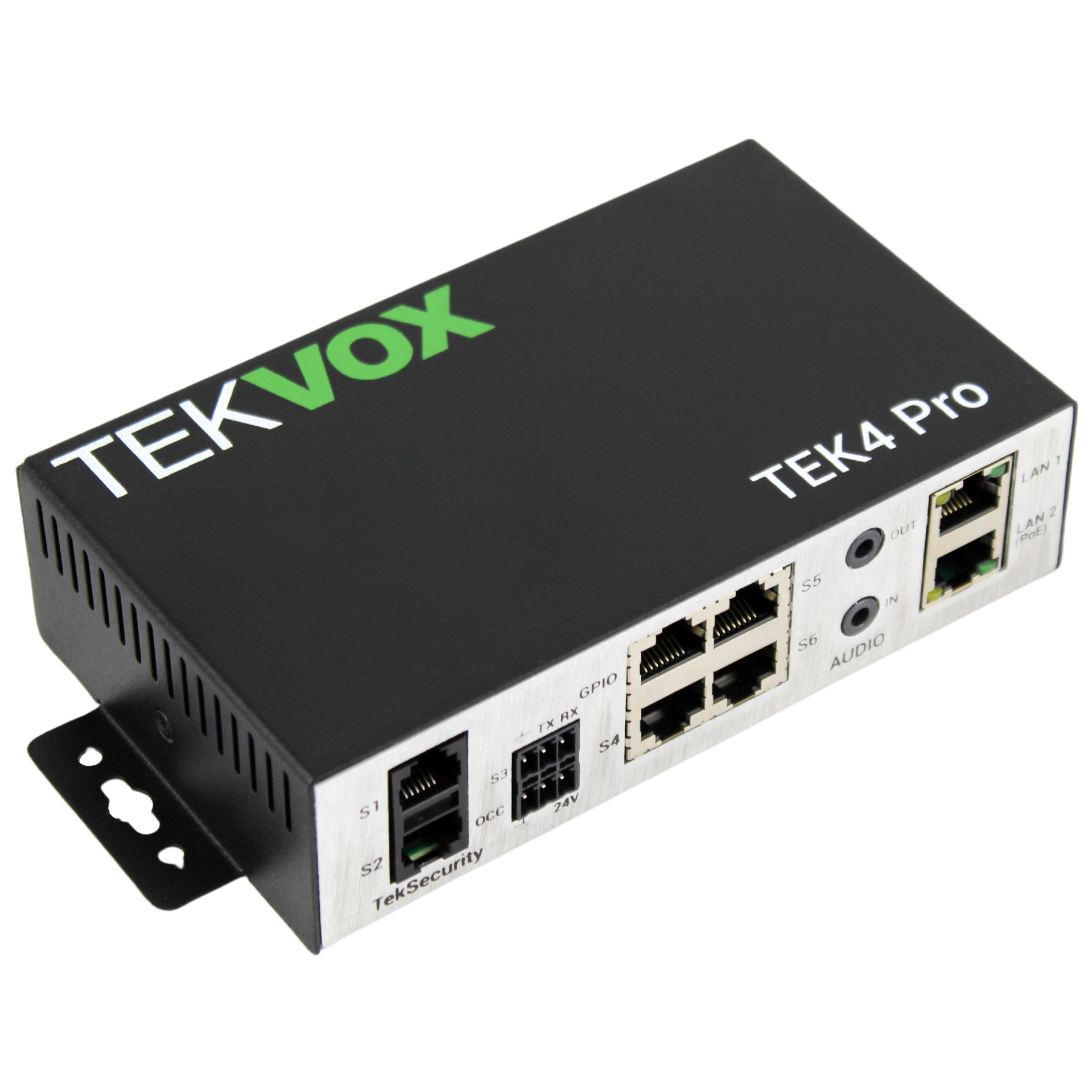

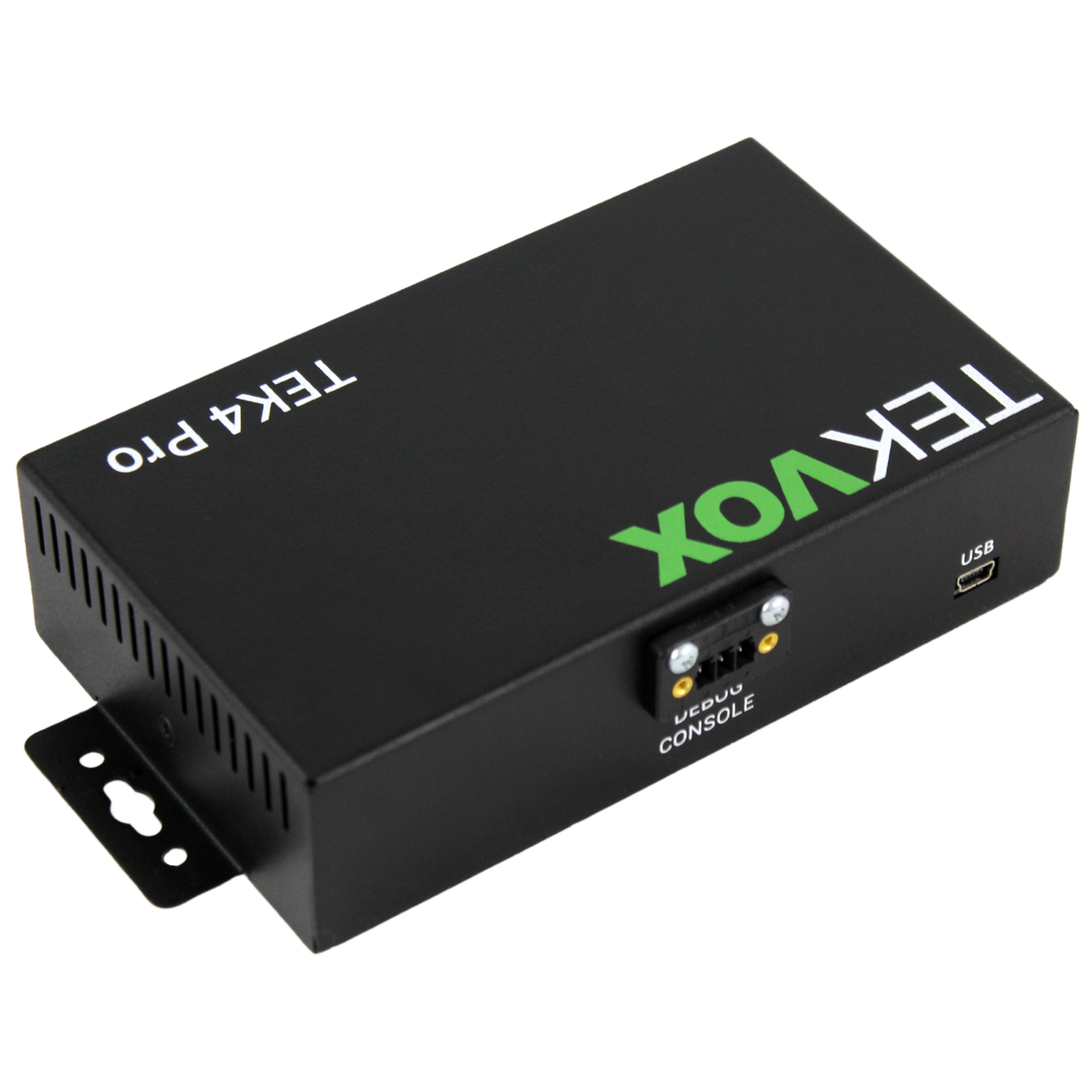

TEK4 Pro TekMonitor

SKU: 70005

70005_1-Web zoom
70005_2-Web zoom
70005_3-Web zoom
70005_4-Web zoom
70005_Front-Web zoom
70005_Back-Web zoom
70005_1-Web
70005_2-Web
70005_3-Web
70005_4-Web
70005_Front-Web
70005_Back-Web
Full Screen

Description

  • Dual Ethernet ports and internal DHCP server for reduced network connections and secure, local A/V network
  • TekSecurity anti-theft protection for two displays or projectors at once
  • Analog input and output for voice communication/recognition applications
  • Simultaneous, independent serial control of up to 6 devices
  • Powerful NXP i.MX ARM processor for open, scalable performance
  • Ultra-low (<3W) power consumption
  • Javascript and Lua scripting capability
  • General-purpose USB 2.0 OTG port for flexible interfacing with other devices

Description

The TEK4 Pro TekMonitor is the 4th generation of TEKVOX’s series of TekMonitor networked A/V controllers. This family of controllers is designed as the heart of remotely-monitored, distributed control and management systems, complete with interchangeable device drivers and advanced asset management. The TEK4 Pro includes significantly upgraded memory and I/O, allowing it to control more devices than ever before, with an unmatched level of versatility. A powerful ARM-based processor running a Linux operating system allows the TEK4 Pro to support Javascript and Lua scripting.

The TEK4 Pro’s dual Ethernet ports and an internal DHCP server allow it to generate a secure, local A/V network, reducing the number of network connections needed for complex systems and ensuring continued system operation during network outages. It is also powered via PoE (Power Over Ethernet) for streamlined cabling and installation. The TEK4 Pro can provide real-time, pure-hardware anti-theft protection for multiple displays at once, ensuring that expensive equipment is kept safe at all times.

Need to replace an older model of TekMonitor? No problem. The TEK4 Pro is fully compatible with all TEKVOX configuration, programming, remote monitoring, and enterprise management tools, and will operate seamlessly in place of any previous generation of TekMonitor.

TEK4 Pro TekMonitor Part Number: 70005

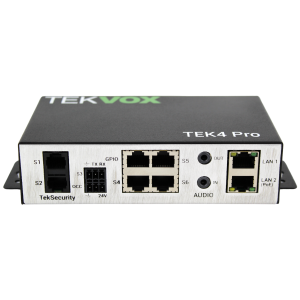

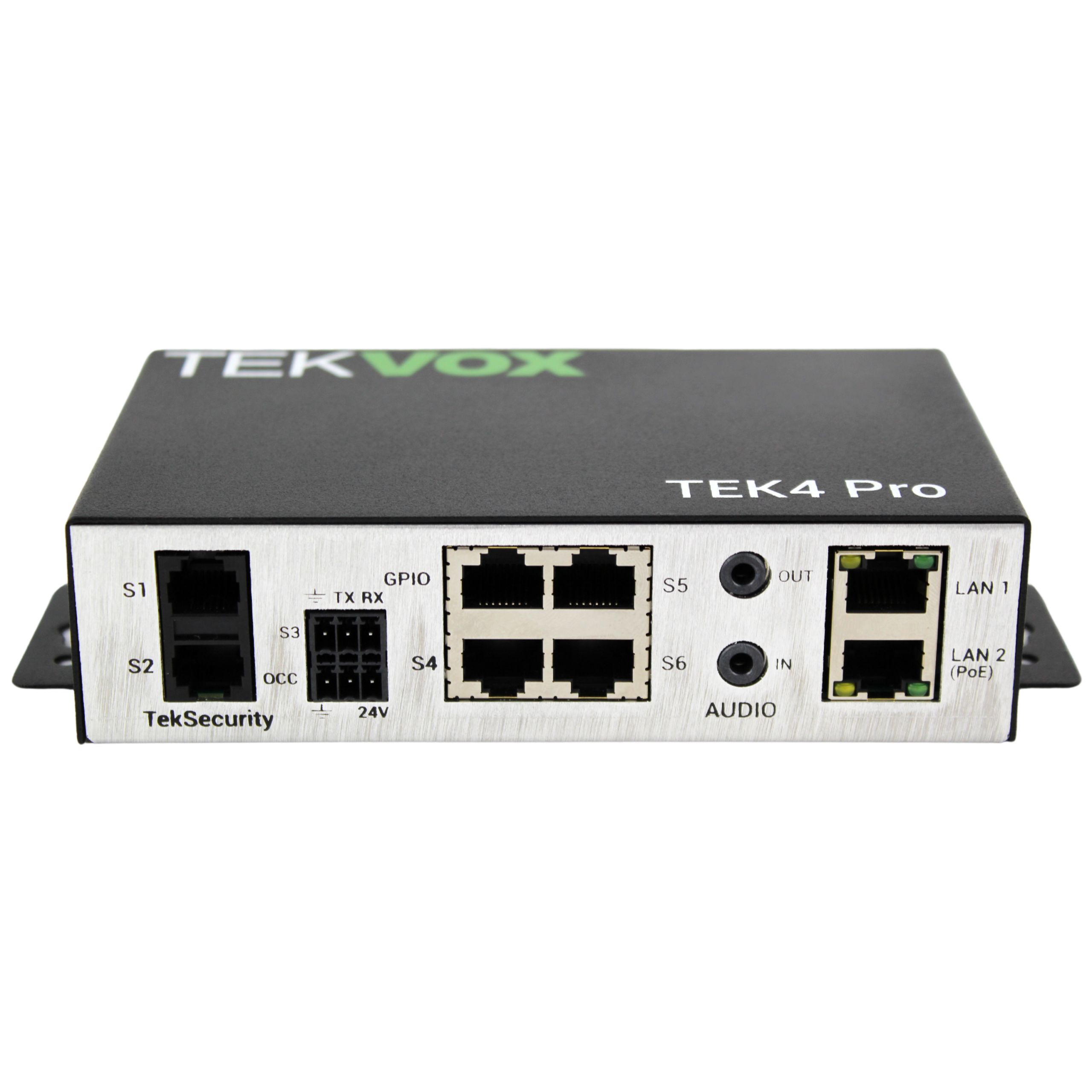

Ethernet Interface 2x RJ45, Female (10/100Base-T, half-full duplex with auto-negotiation)
TekSecurity (S1 & S2) 2x RS232 (RJ12, Female)
RS232 Interface (S3) 3-pin Phoenix terminal block, Female
Occupancy Sensor Interface (OCC) 3-pin Phoenix terminal block, Female
Flexible I/O Interface (GPIO) RJ45, Female
RS232 Interface (S4 & S5) 2x RJ45, Female
RS232/RS485 Interface (S6) RJ45, Female)
Audio Input 3.5mm mini jack, line level
Audio Output 3.5mm mini jack, line level
Processor NXP iMX6ULL, single Cortex-A7 core SoC @ 900 MHz
Memory 512 MB 400 MHz DDR3 Memory
Storage 8 GB eMMc storage
Operating Systen Embedded Linux operating system with Javascript & DHCP server support
Supported Scripting Languages C# via .Net 8 Core, Nodejs, Lua
Power Supply Power Over Ethernet (PoE) via LAN 2
Power Consumption 3 W (max)
Temperature 32 ~ 122°F (0 ~ 50°C)
Enclosure Type Aluminum
Product Dimensions 6.9" (176mm) x 3.4" (86mm) x 1.5" (39mm)
Product Weight 0.65 lbs. (294 g)
Compliances FCC Class B, Canadian ICES-003, CE
