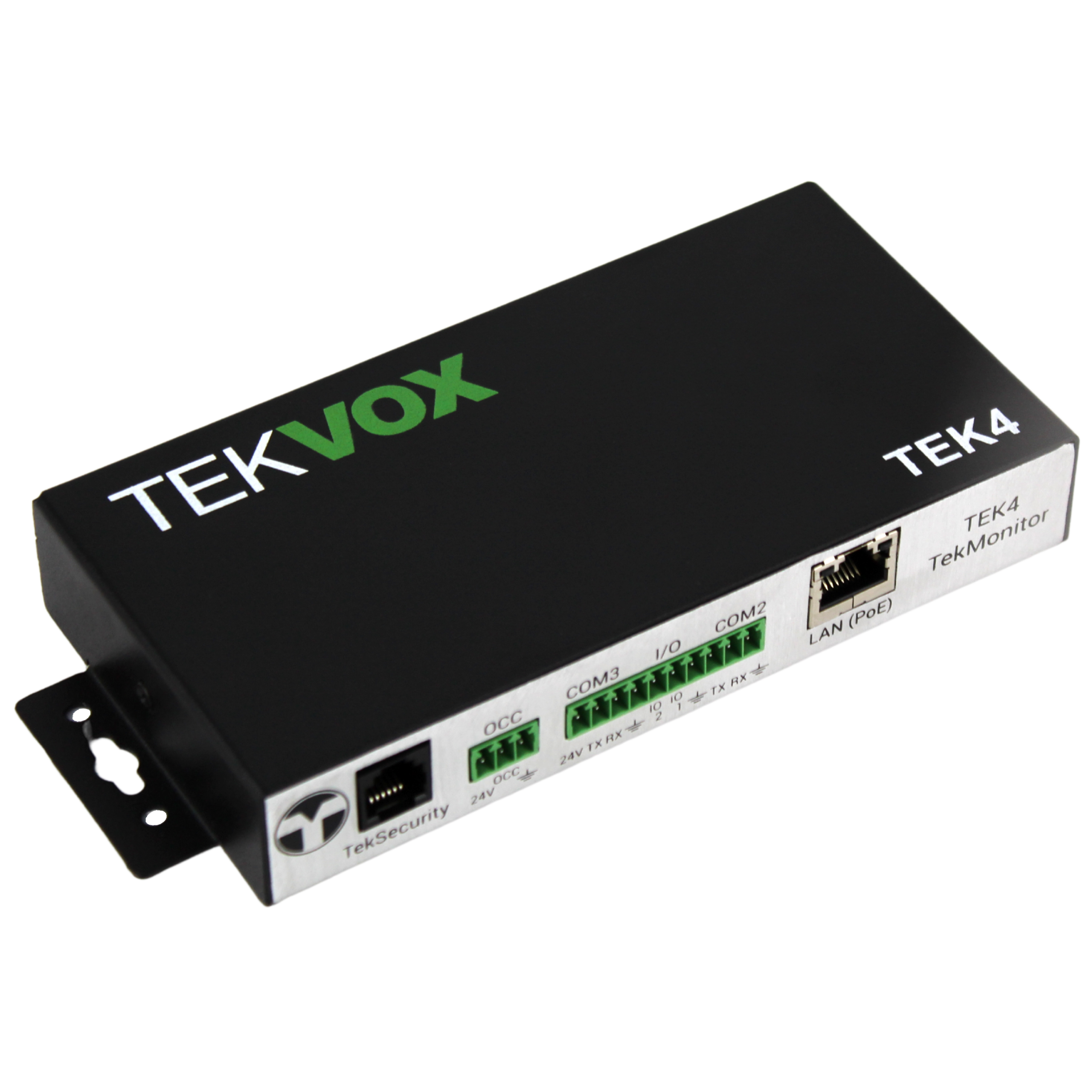

70006_1-Web

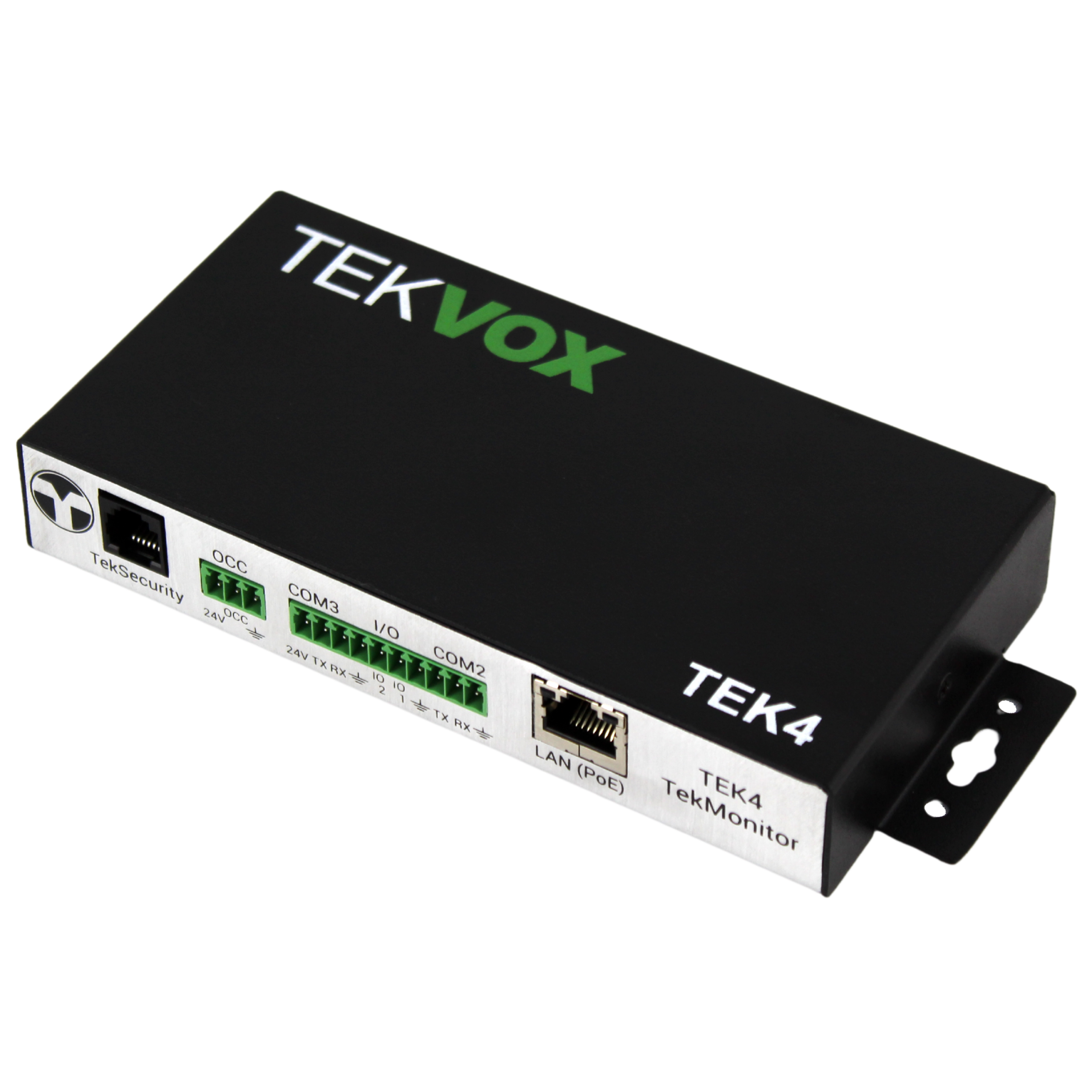

70006_2-Web

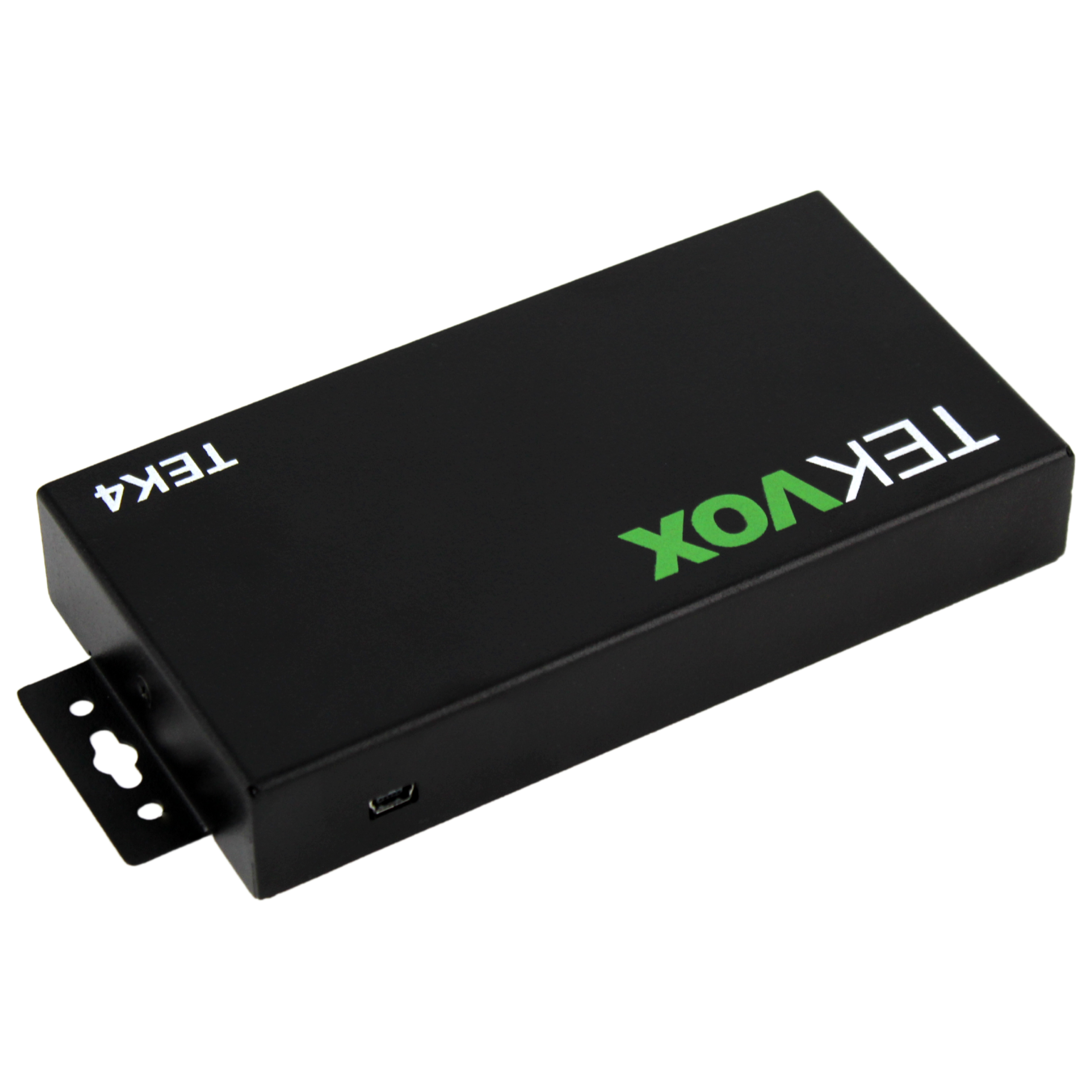

70006_3-Web

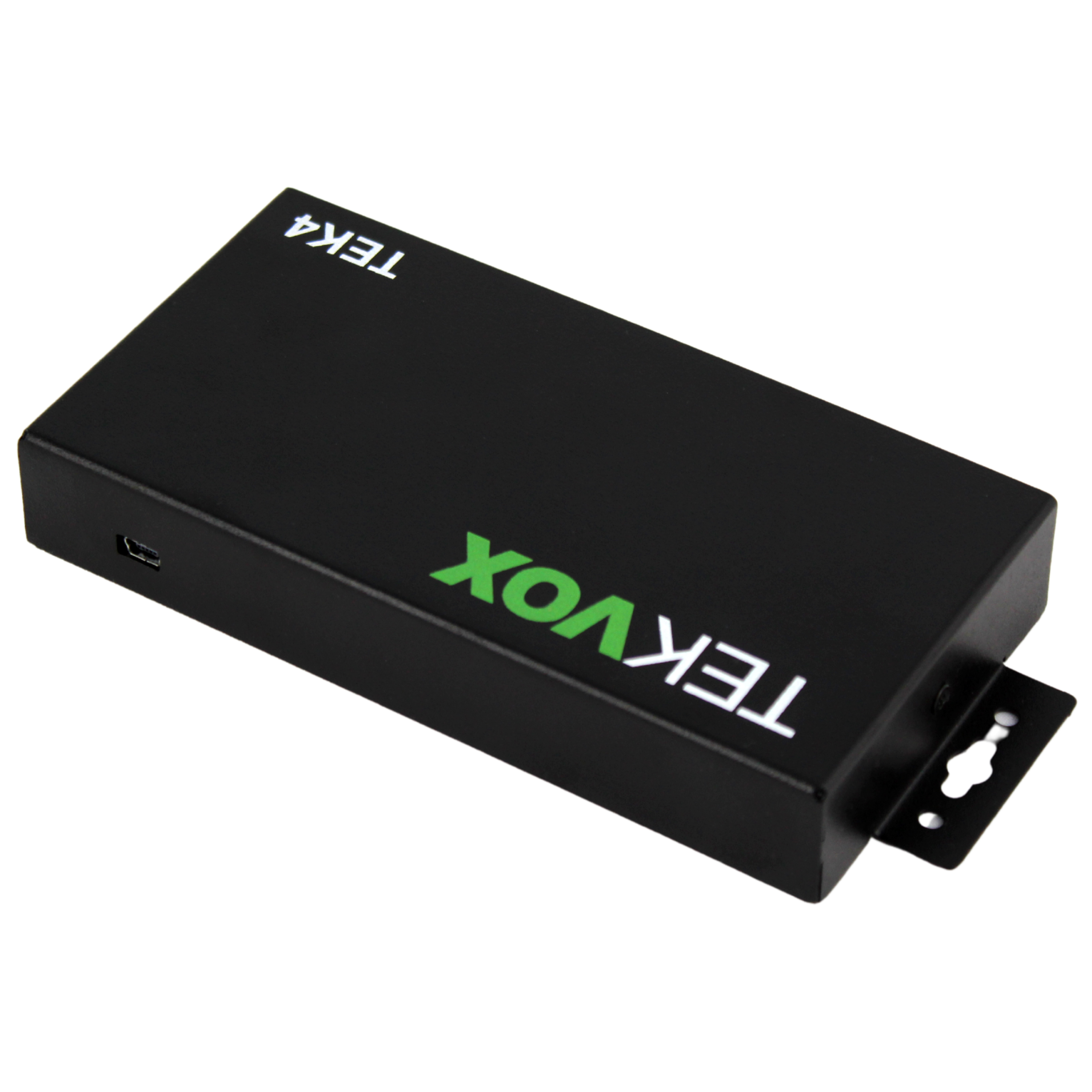

70006_4-Web

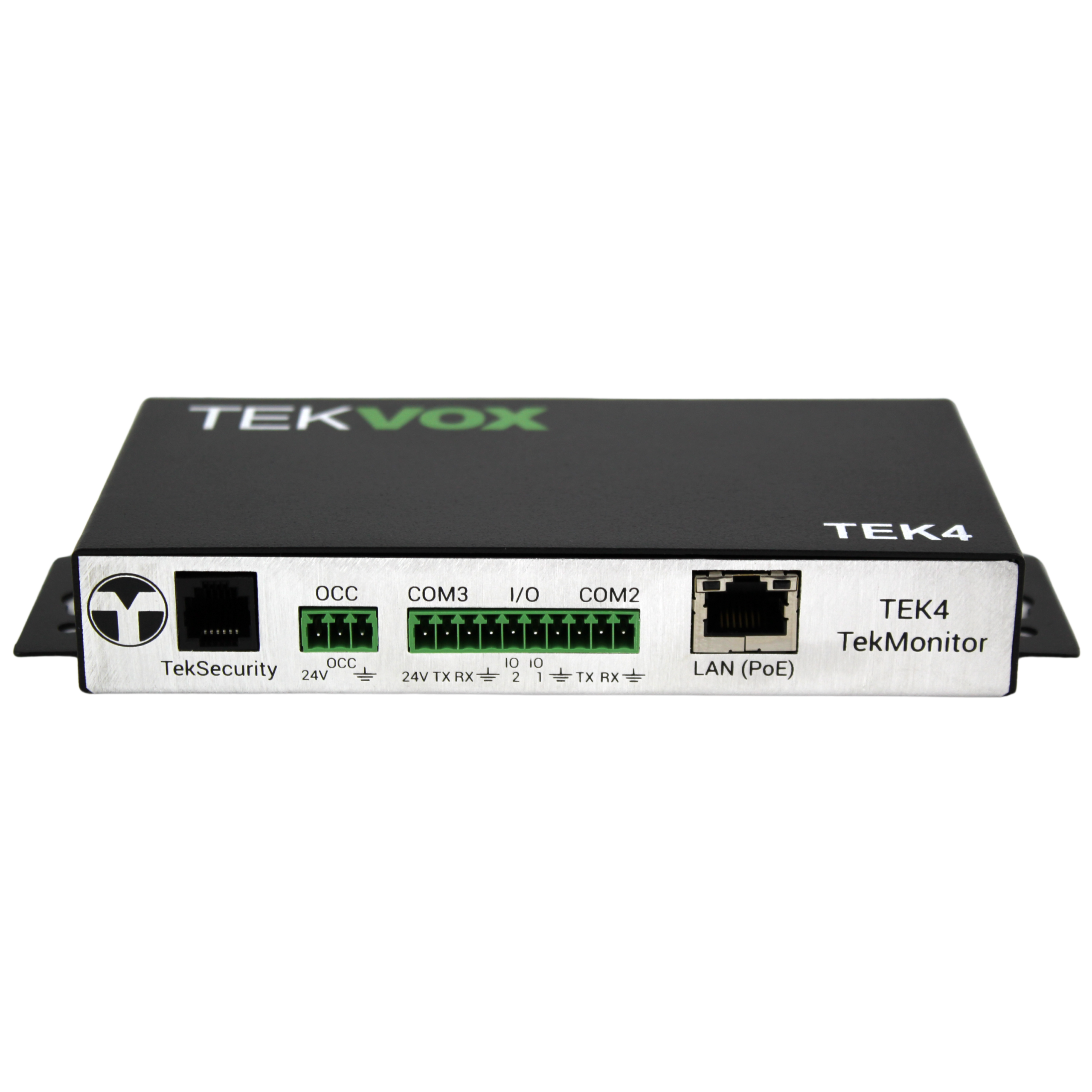

70006_Front-Web

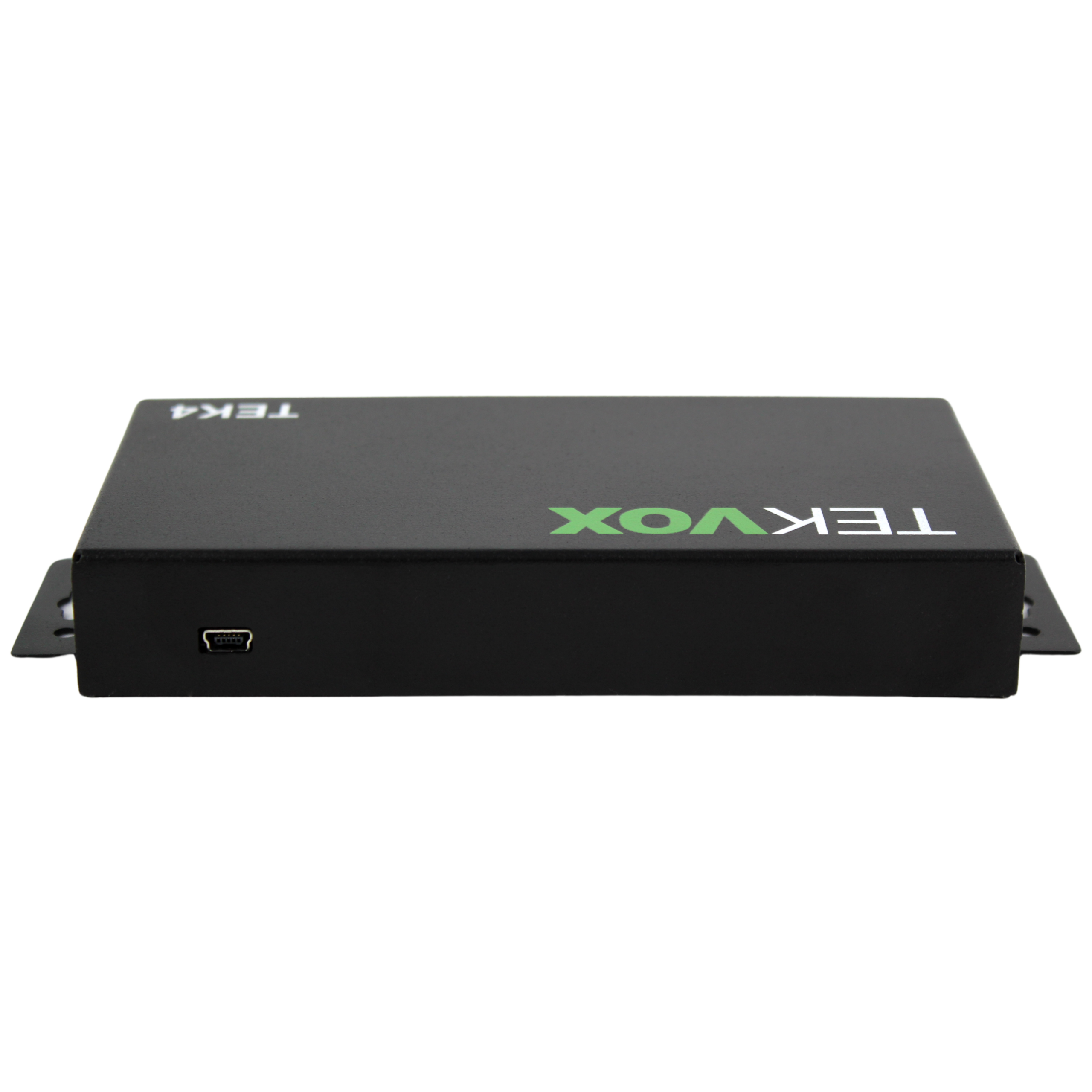

70006_Back-Web
Full Screen

Description

  • Powered via PoE on LAN connection for simplified installation
  • Supports TekSecurity anti-theft protection for a display or projector
  • Powerful NXP i.MX ARM processor for open, scalable performance
  • Javascript and Lua scripting capability
  • General-purpose USB 2.0 OTG port for flexible interfacing with other devices

Description

The TEK4 TekMonitor is the compact edition of the 4th generation of TEKVOX’s series of TekMonitor networked A/V controllers. This family of controllers is designed as the heart of remotely-monitored, distributed control and management systems, complete with interchangeable device drivers and advanced asset management. The TEK4 includes significantly upgraded memory, as well as a powerful ARM-based processor running a Linux operating system. The TEK4 is powered via PoE (Power over Ethernet) through its LAN connection for simplified installation.

The TEK4’s TekSecurity port provides real-time anti-theft protection for a display or projector, and the OCC port interfaces with 24V occupancy sensors for occupancy-based system automation.

Need to replace an older model of TekMonitor? No problem. The TEK4 is fully compatible with all TEKVOX configuration, programming, remote monitoring, and enterprise management tools, and will operate seamlessly in place of any previous generation of TekMonitor.

TEK4 TekMonitor Part Number: 70006
Ethernet Interface RJ45, Female (10/100Base-T, half-full duplex with auto-negotiation)
TekSecurity (COM1) RS232 (RJ12, Female)
RS232 Interfaces (COM3 & COM2)
Flexible I/O Interface (I/O)
10-pin Phoenix terminal block, Female
Occupancy Sensor Interface (OCC) 3-pin Phoenix terminal block, Female
USB Port USB 2.0 Mini-B, Female, OTG
Processor NXP iMX6ULL, single Cortex-A7 core SoC @ 900 MHz
Memory 512 NB 400 MHz DDR3 Memory
Storage 8 GB eMMC Storage
Operating System Embedded Linux operating system with Javascript support
Scripting Support C# via .Net 8 Core, Nodejs, Lua
Power Supply Power Over Ethernet (PoE) via LAN
Temperature 32 ~ 122°F (0 ~ 50°C)
Enclosure Type Aluminum
Product Dimensions 6.9" (176mm) x 3" (76mm) x 1" (25.4mm)
Product Weight 0.36 lbs. (162 g)
Conmpliances FCC Class B, Canadian ICES-003, CE
