PA2B Multi-Function Room Amplifier

SKU: 78040

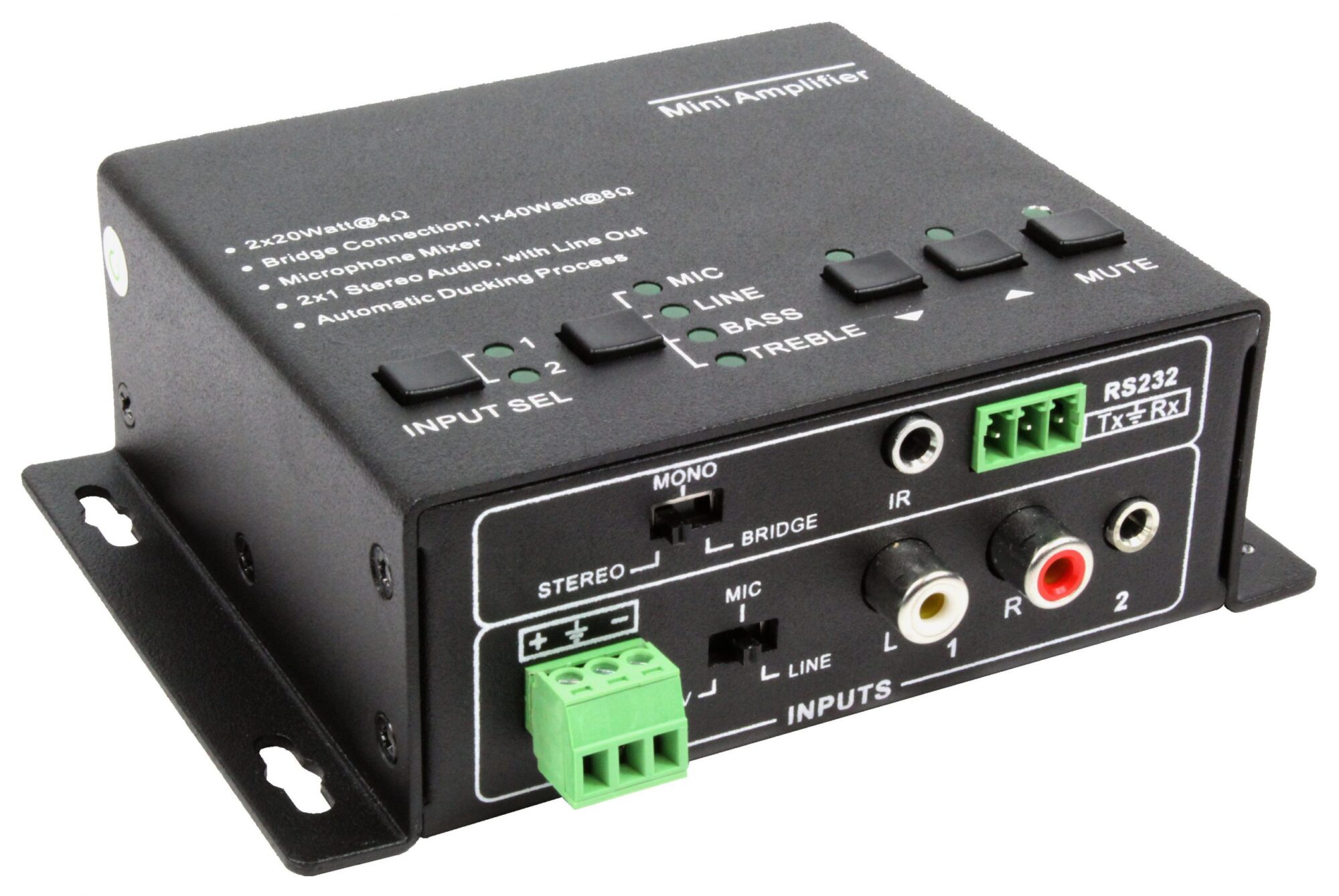

PA2B_1 zoom

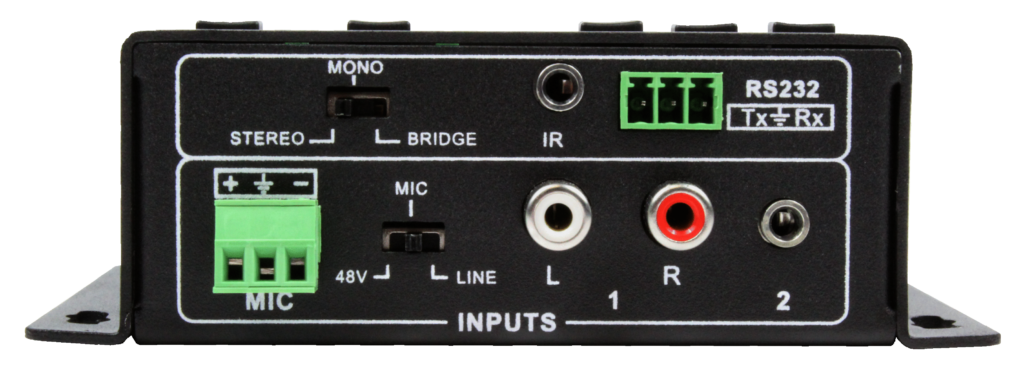

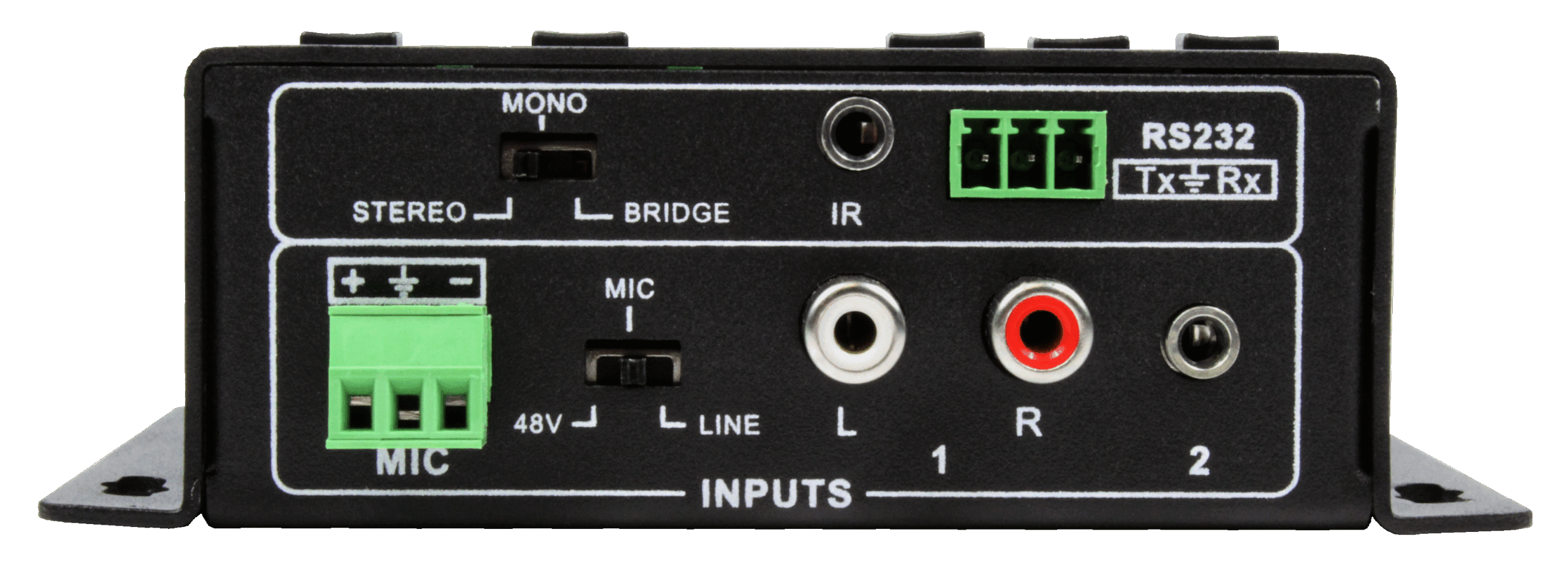

PA2B_front zoom

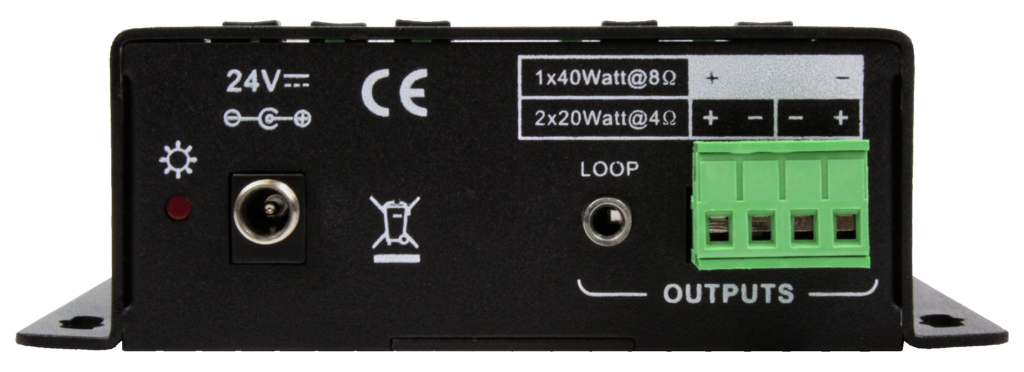

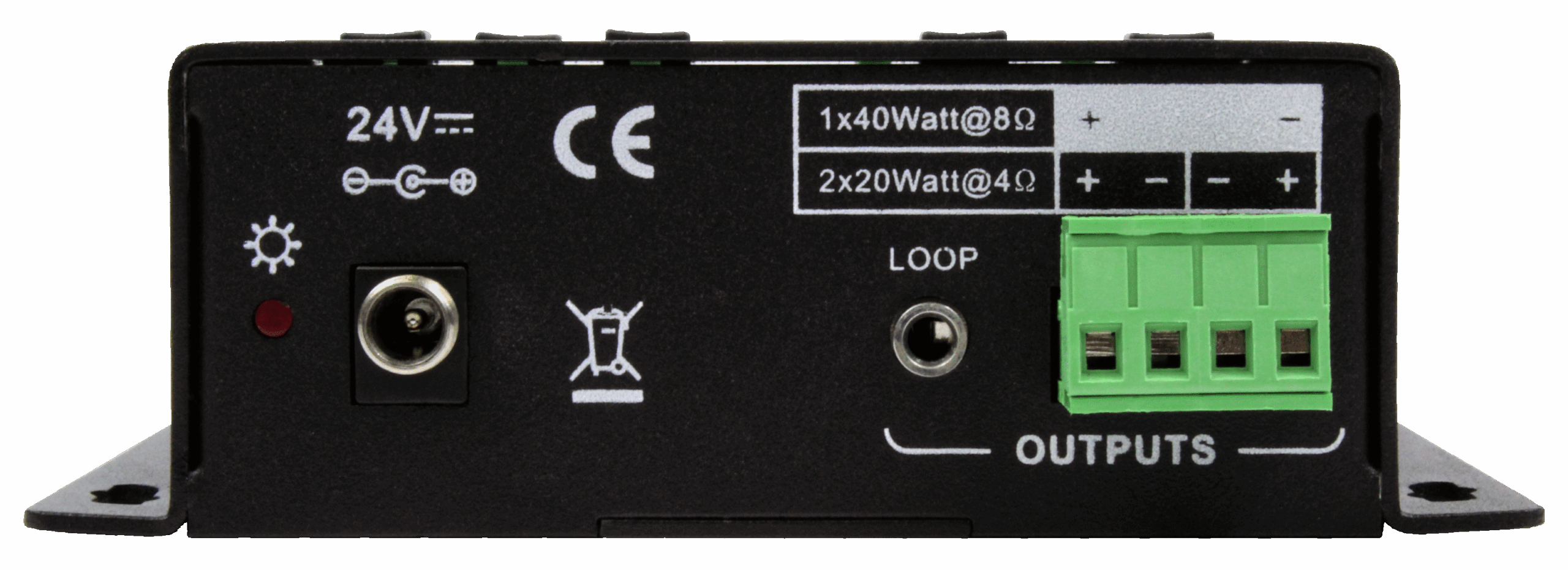

PA2B_back zoom

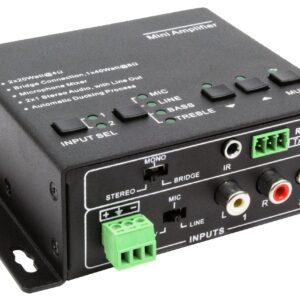

PA2B_1

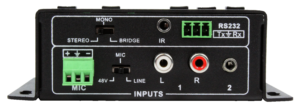

PA2B_front

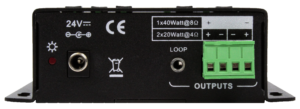

PA2B_back
Full Screen

Description

  • 2 x 20 Watts @ 4 Ohm or Bridged to 40 Watts @ 8 Ohm
  • Stereo or Mono selection
  • Two stereo audio inputs and Volume/Bass/Treble controllable by button, IR remote, and RS232
  • Balanced microphone input with selectable 48V phantom power, mic, or line settings
  • Separate volume control for line level sources and microphone
  • Loop output after-volume control to connect other TEK-PA2Bs or another amplifier
  • Auto noise gate to reduce noise on mic input
  • Extensive RS-232 control using simple ASCII commands

Description

The TEK PA2B is a small, affordable multi-function room amplifier with many features including RS232 control. This compact Class-D digital amplifier has three inputs (two selectable line inputs and one balanced MIC with selectable phantom power). It is integrated with powerful features including speaker bridging, stereo or mono selection, EQ control, a microphone mixer, and simple-to-program RS-232 control. The PA2B is ideal for classroom and training room applications, offering independent level control for each input and efficient control of a full room’s audio without feedback.

PA2B Multi-Function Room Amplifier Part Number: 78040
Inputs 2 Stereo Audio, Unbalanced (2 RCA, 1 3.5mm mini jack) 1 Stereo Audio, Balanced (3 Pin Phoenix)
Control Port 1 RS-232 (3 Pin Phoenix)
Input Impedance >10KΩ
Output 1 Stereo, Balanced (4 Pin Phoenix) 1 Loop Stereo Audio (3.5mm mini jack)
Output Impedance 50Ω/stereo, 4~8Ω/Amplifier
Power Output 4Ω: 2x20 Watts 8Ω: 40 Watts, Bridged
Frequency Response 20Hz ~ 20KHz
Voltage Gain 32dB
Temperature 23 ~ 95°F (-5 ~ 35°C)
Power Supply Input: 100 ~ 240V AC Output: DC 24V, 2.5A
Case Dimensions 4.8"(122mm) x 3.4”(86mm) x 1.5”(38mm)
Product Weight 0.64 lbs. (290g)
