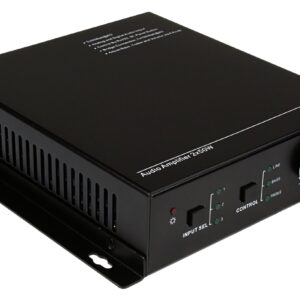

The TEK PA100W is a compact, Class-D audio amplifier featuring switchable stereo or mono output, complete EQ adjustment, and intuitive work status display. Volume and EQ can be adjusted easily using front-panel controls, RS232 serial commands, IR remote, or TCP/IP interface. The amplifier ships with its own power supply and mounting ears, and makes an ideal amplifier for adjustable audio in a classroom or conference room.
| TEK PA100W Audio Amplifier | Part Number: 78040-50/8 |
|---|---|

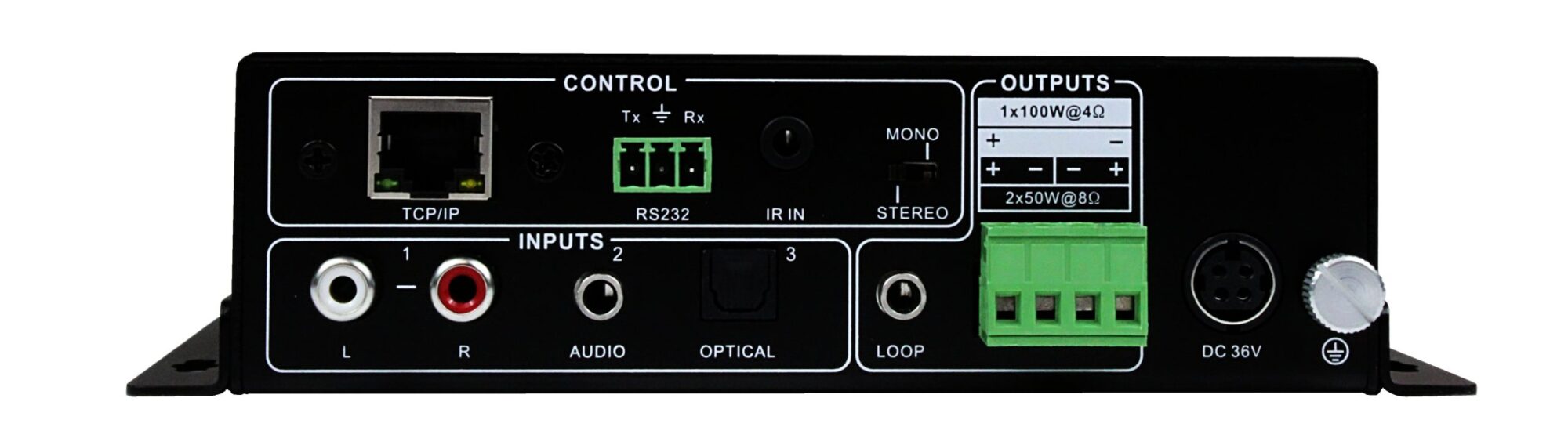

| Inputs | 1 L+R Stereo (2x RCA) 1 Analog (3.55mm mini jack) 1 Optical Fiber (SPDIF) |
| Input Impedance | >10kΩ |
| Outputs | 1 Loop Output (3.5mm mini jack) 1 Stereo / Mono (4 Pin Phoenix Connector) |
| Signal-to-Noise Ratio (SNR) | 80dB |

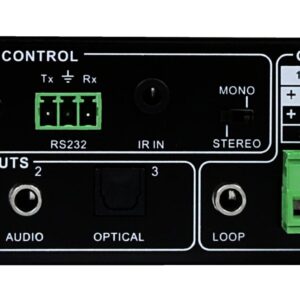

| Control Ports | 1 RS232 (3 Pin Phoenix) 1 IR In (3.5mm mini jack) 1 TCP/IP (RJ45, Female) |
| Voltage Gain | 32dB |
| Output Power | 100W @ 4Ω / 2x50W @ 8Ω |
| Power Supply | Input: 100 ~ 240VAC, 50/60Hz Output: DC 36V, 2.66A |
| Temperature | 14 ~ 131°F (-10 ~ 55°C) |
| Humidity | 10 ~ 90% |
| Product Dimensions | 5.83"(148mm) x 1.73"(44mm) x 6.5"(165mm) |
| Product Weight | 1.59 lbs. (720g) |
