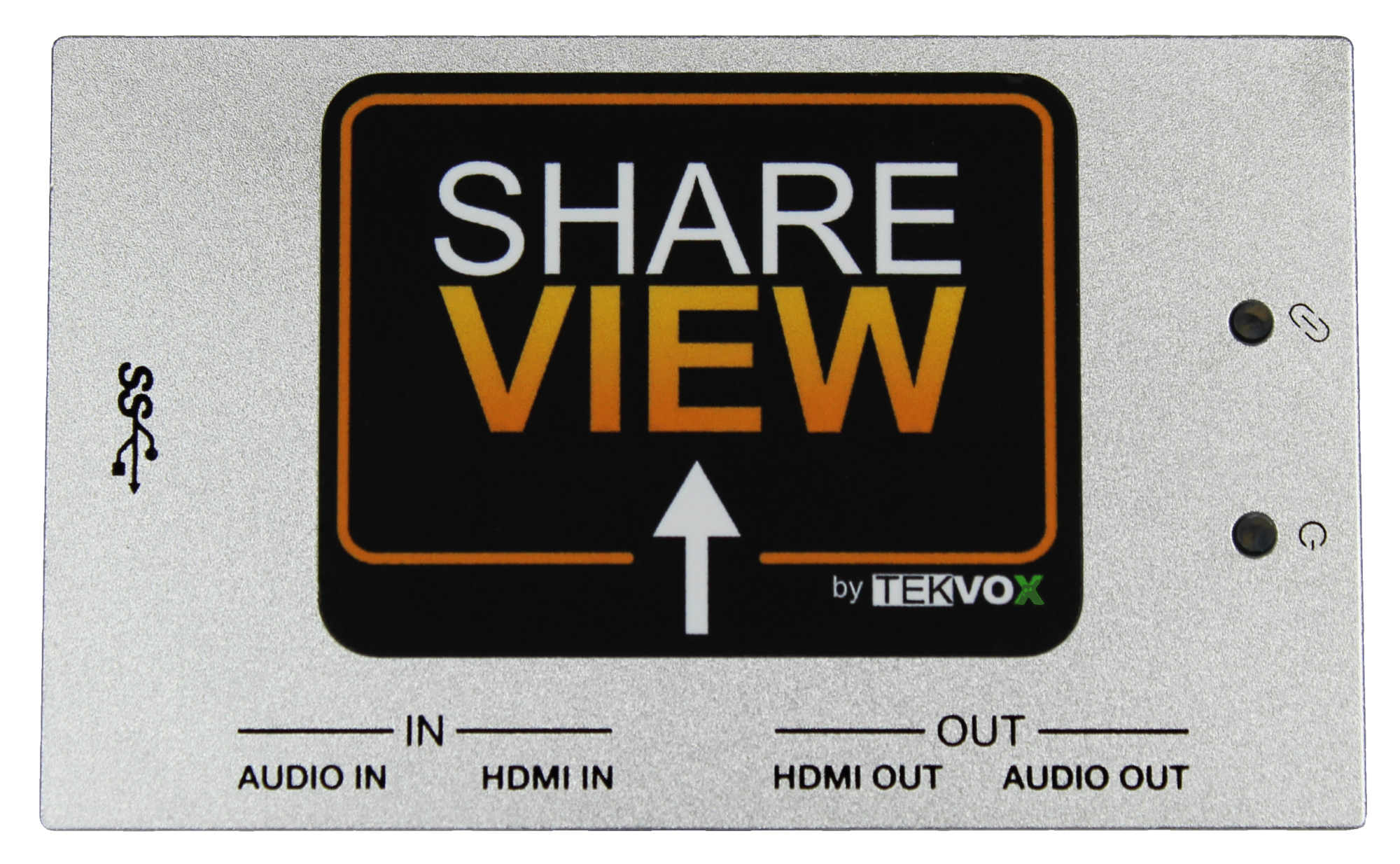

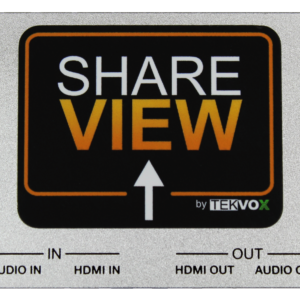

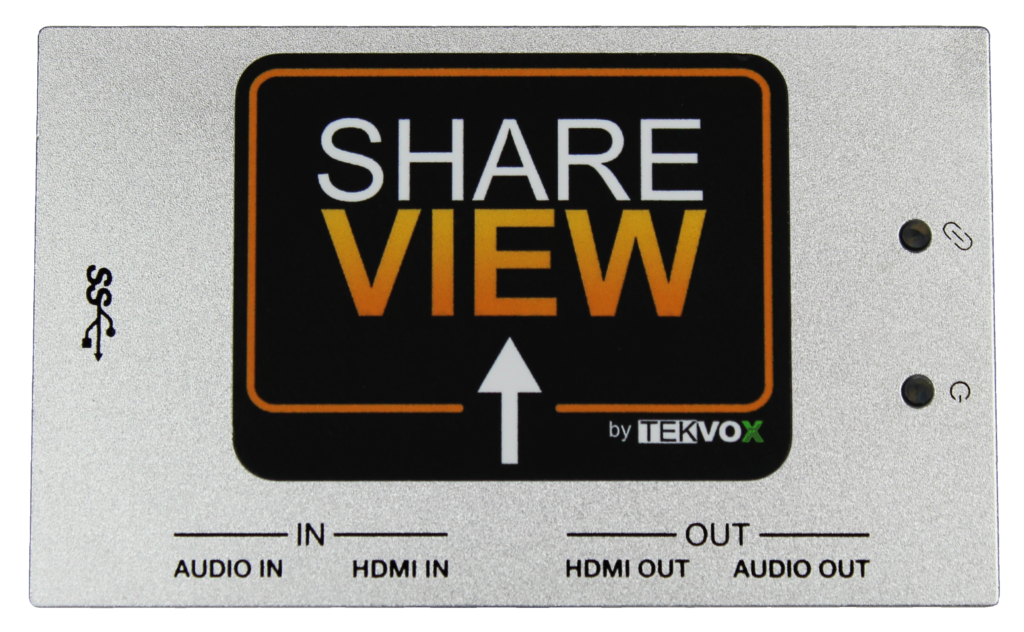

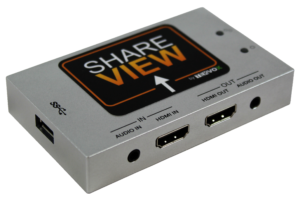

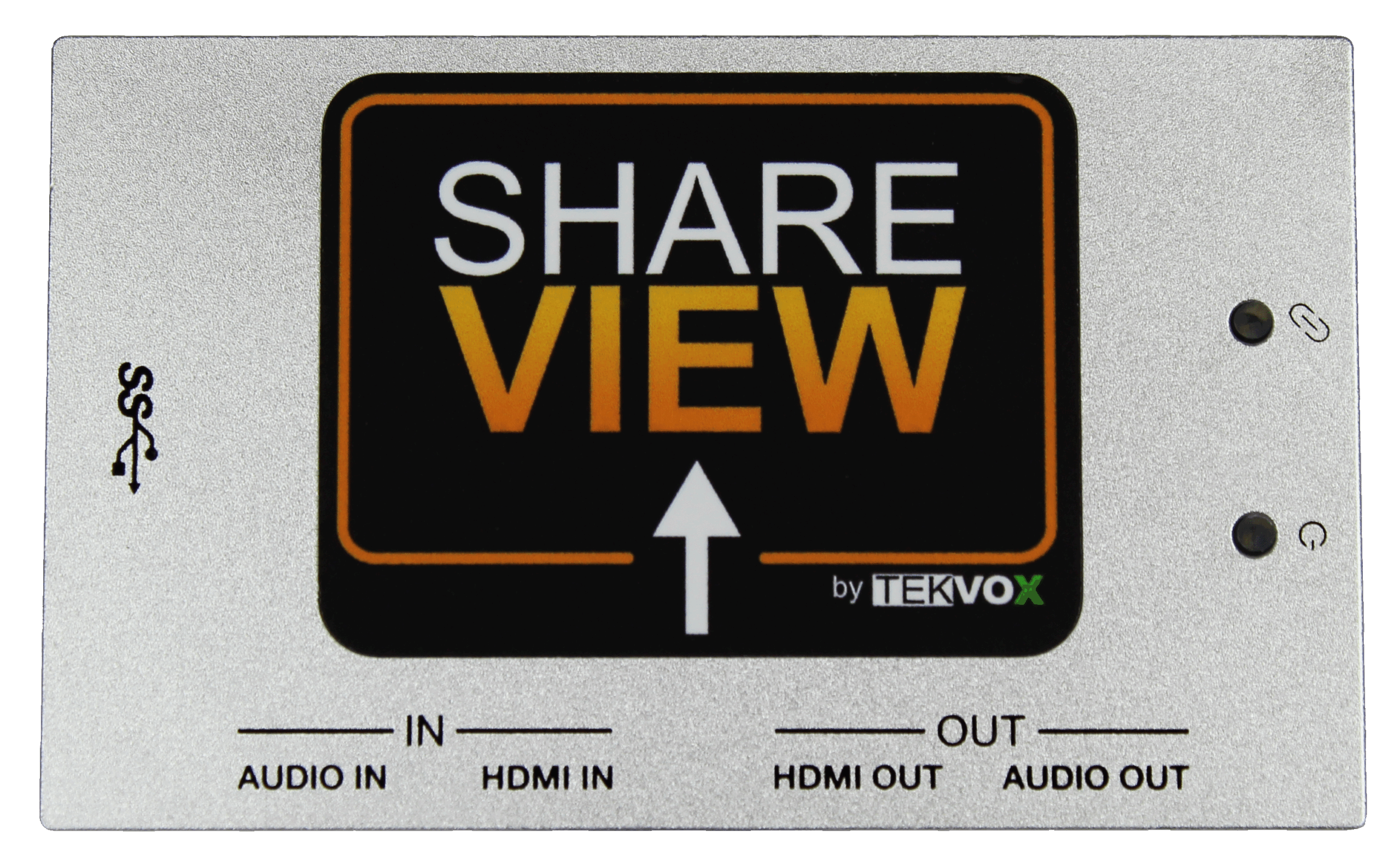

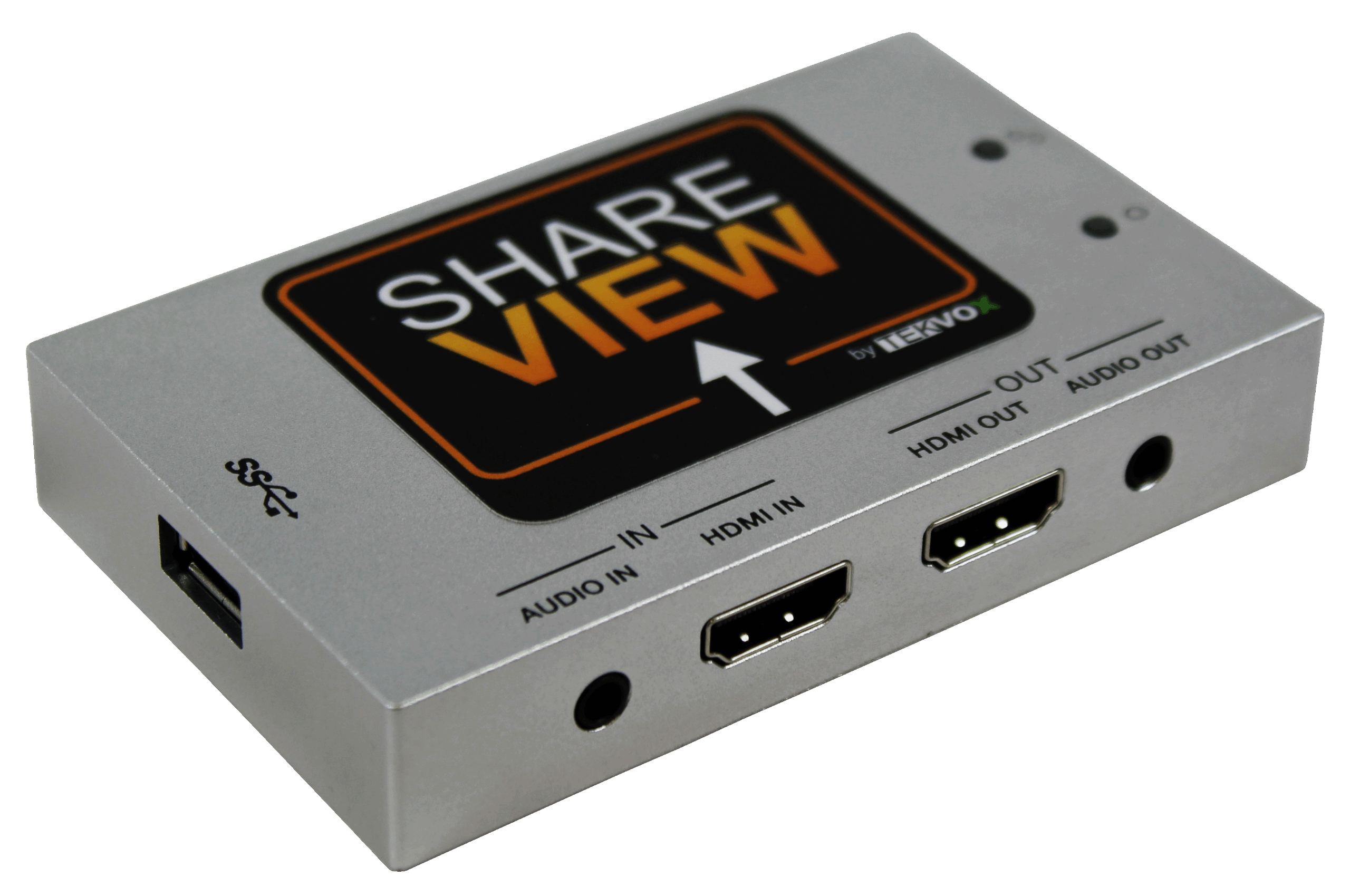

The TEKVOX 79060 is an affordable HDMI to USB capture device with audio insertion and de-embedding, as well as an HDMI split output. The TEKUH60P allows users to connect an external HDMI and audio source to your PC for easy video conferencing or recording. Simultaneously, the 79060 can output HDMI video to a confidence monitor and send audio to a speaker system. The audio source is selectable via USB from the connected computer, and the 79060 is powered via its USB connection.
| TEKUH60P USB Capture Device | Part Number: 79060 |
|---|---|
| Inputs | 1 HDMI (Female) 1 Stereo Audio (3.5mm mini jack) |
| Outputs | 1 USB3.0 (Type A, Female) 1 HDMI (Female) 1 Stereo Audio (3.5mm mini jack) |
| Resolution Range | HDMI Input: Up to 4Kx2K@30Hz (4:4:4) HDMI Loop Output: Up to 4Kx2K@60Hz (4:4:4) USB Capture: Up to 1080p@60Hz |
| OS Compatibility | Windows 7/8/10, Linux (Kernel version 2.6.38 and above), OS X (10.8 and above) |
| Power Consumption | 3.4W (max) |
| Temperature | 32 ~ 104°F (0 ~ 40°C) |
| Humidity | 20% ~ 90% |
| Case Dimensions | 3.86"(98mm) x 2.36"(60mm) x 0.67"(17mm) |
