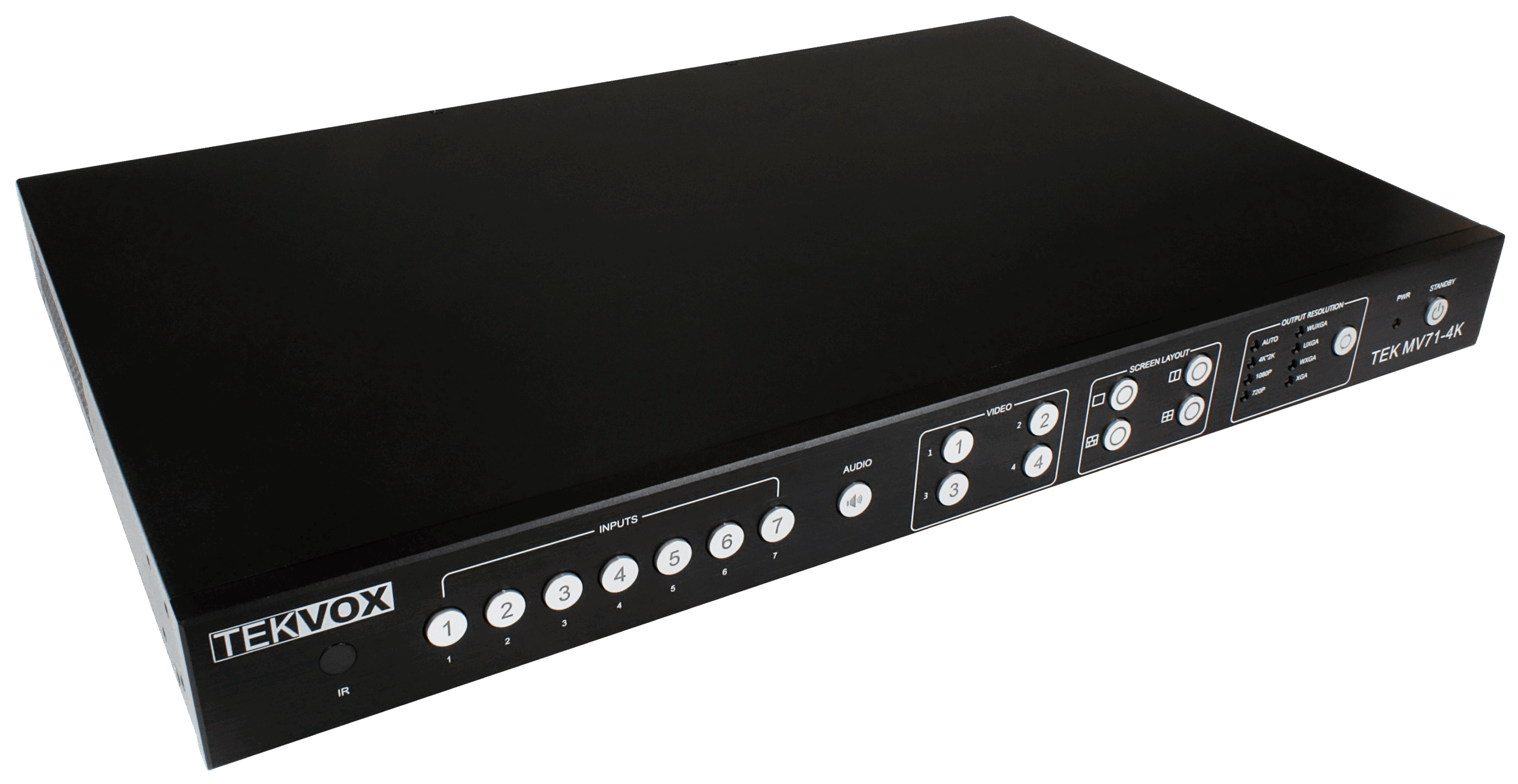

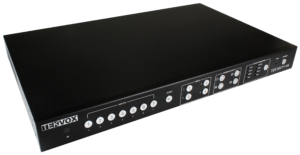

The Quad-View MV71 4K presentation switcher is the latest in 4K technology from TEKVOX which supports stunning 4K native resolution with the ability to view up to four separate sources and display them on a single screen at 1080P. Allowing four individuals to share their screen without loss of resolution makes the MV71 a perfect solution for collaboration tables and large conference rooms.
| TEK MV71 4K Matrix Switcher | Part Number: 79064 |
|---|---|
| Inputs | 4 HDMI (Female) 2 DisplayPort (Female, Full-size) 1 VGA (Female, 15-pin) |
| Outputs | 1 HDMI (Female) |
| Resolution Range | Up to 4Kx2K@30Hz |
| Audio Inputs | 7 Stereo (3.5mm mini jack) |
| Audio Outputs | 4 Stereo (3.5mm mini jack) 1 Optical |
| Control Ports | 1 RS-232 (DB-9, Female) 1 TCP/IP (RJ45, Female) 1 USB (Type-A Female, Reserve) |
| Power Input | 110-240V AC |
| Power Consumption | 15W (max) |
| Case Dimensions | 17.3"(440mm) x 1.7"(43.5mm) x 10.7"(272mm) |
| Product Weight | 7.3 lbs. (3.3kg) |
