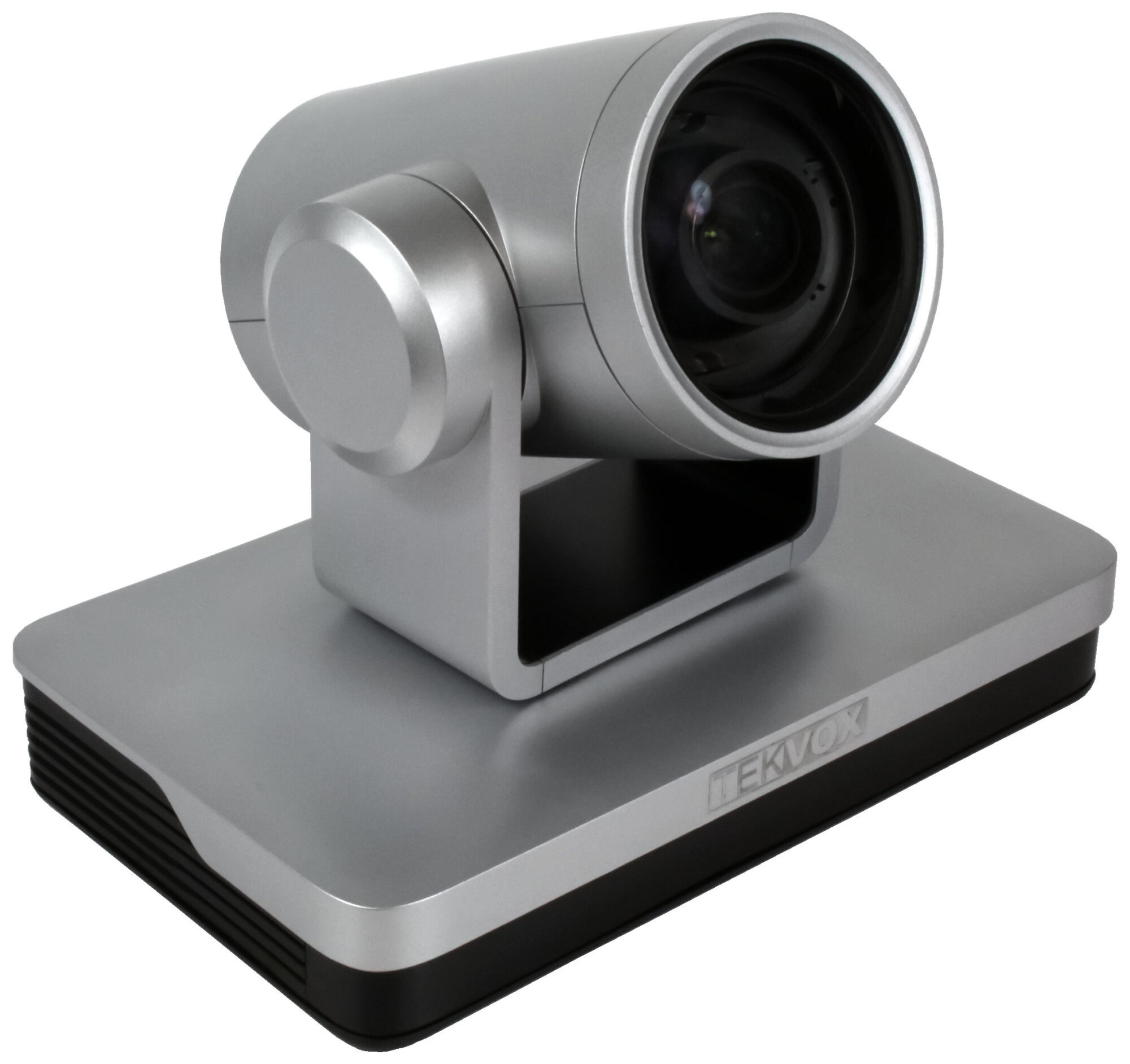

The 79068-4K-12 is an ultra-high–definition camera with a 12x optical zoom lens. Featuring the smoothest PTZ movement of any commercially-available camera, and multiple simultaneous video outputs, this camera is perfect for video conferencing & lecture capture applications.
The camera can be configured to multiple output resolutions, up to 4Kx2K@60Hz, and can be controlled via TCP/IP, RS-232/422/485, or remote controller.
| UHD HDBase-T PTZ Camera, 12x Optical Zoom | Part Number: 79068-4K-12 |
|---|---|
| Inputs | 1 Stereo Audio Line In |
| Outputs | 1 HDMI (19-pin, Female) 1 USB3.0 (Type-B, Female) |

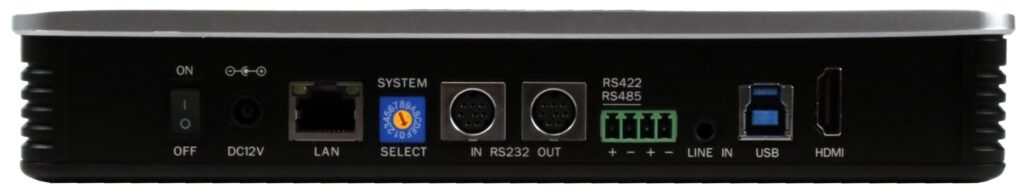

| Control Ports | 1 RS-232 Input (8-pin Mini-DIN, Female) 1 RS-232 Output (8-pin Mini-DIN, Female) 1 RS-422/485 (4-pin Phoenix) 1 Rotary DIP Switch 1 10M/100M/1000M LAN (RJ45, Female) |
| Camera Zoom | Optical, 12x |
| Supported Resolutions | Up to 4Kx2K @ 60Hz |
| View Angle | Pan: 7.59°(narrow) ~ 80.4°(wide) Tilt: 4.6°(narrow) ~ 50°(wide) |
| Focal Length | f = 3.85mm ~ 43.06mm |
| Iris | F1.8 ~ F3.56 ±5% |
| Minimum Illumination | 0.05Lux (F1.8, AGC ON) |
| Digital Noise Reduction (DNR) | 2D & 3D Digital Noise Reduction |
| Networking Protocol | TCP/IP, RTSP, RTMP, ONVIF, GB/T28181 |
| Pan Rotation | -110 ~ 110° |
| Tilt Rotation | -30 ~ 30° |
| Power Supply | Input: 110 ~ 220 VAC Output: DC 12V, 2.5A |
| Power Consumption | 12W (max) |
| Temperature | 14 ~ 122°F (-10 ~ 50°C) |
| Humidity | 20 ~ 80% |
| Product Dimensions | 8.66" (220mm) x 5.67" (144mm) x 6.26" (159mm) |
| Product Weight | 3.74 lbs. (1.7kg) |
