The 79068-4K-12B is a broadcast-quality, ultra-high definition camera with a 12x optical zoom lens. With up to 255 configurable presets, the smoothest PTZ movement of any commercially-available camera, and multiple simultaneous video outputs, this camera is perfect for exacting, high-quality video conferencing & lecture capture.
The camera can be configured to multiple output resolutions, up to 4Kx2K@60Hz, and can be controlled via TCP/IP, RS-232/422/485, or remote controller.
| Premium UHD HDBase-T PTZ Camera, 12x Optical Zoom | Part Number: 79068-4K-12B |
|---|---|
| Inputs | 1 Stereo Audio Line In |
| Outputs | 1 HDMI (19-pin, Female) 1 USB3.0 (Type-B, Female) |

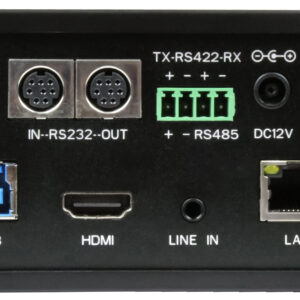

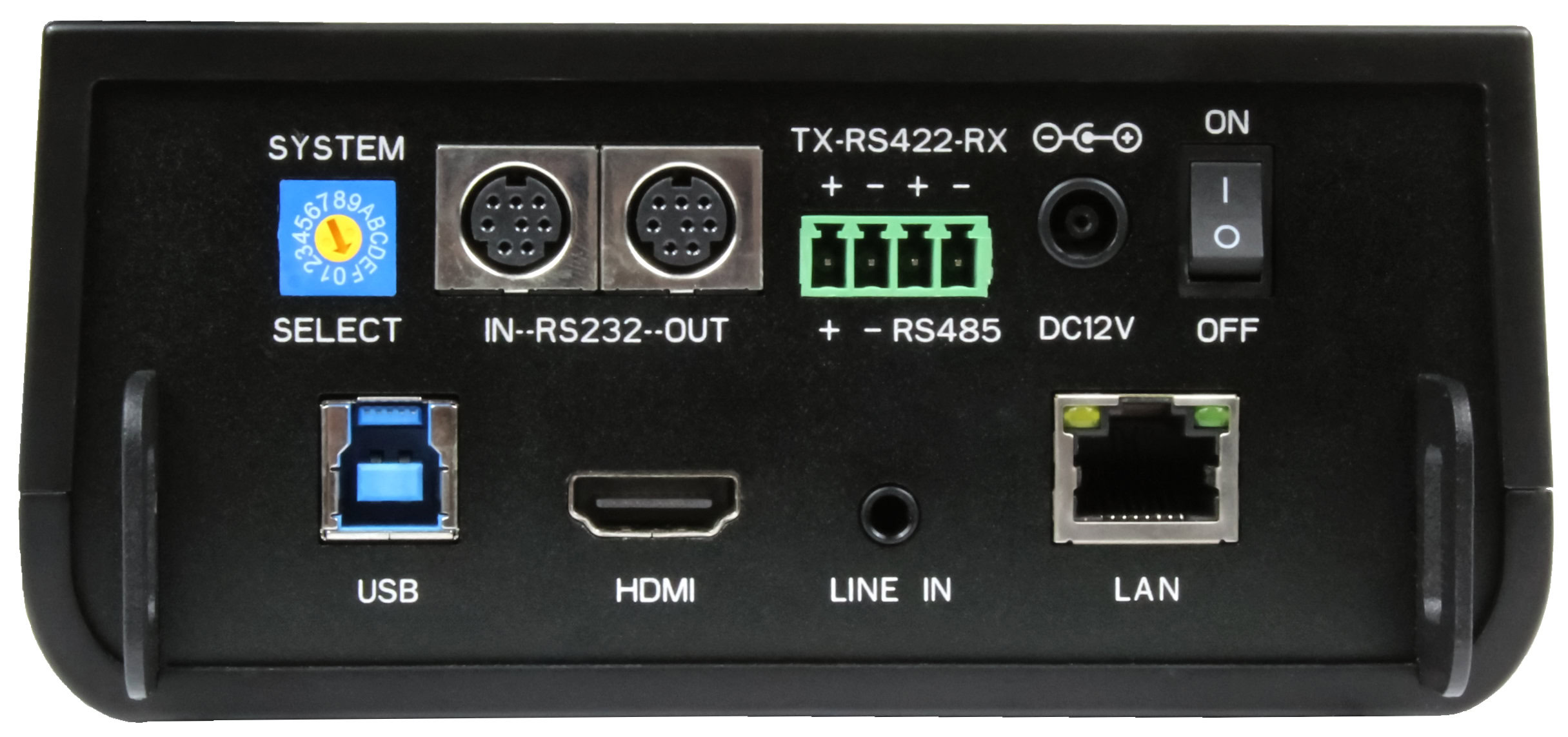

| Control Ports | 1 RS-232 Input (8-pin Mini-DIN, Female) 1 RS-232 Output (8-pin Mini-DIN, Female) 1 RS-422/485 (4-pin Phoenix) 1 10M/100M/1000M LAN (RJ45, Female) |
| Camera Zoom | Optical: 12x Digital: 10x |
| Supported Resolutions | Up to 4Kx2K @ 60Hz |
| View Angle | Pan: 7.59°(narrow) ~ 80.4°(wide) Tilt: 4.6°(narrow) ~ 50°(wide) |
| Focal Length | f = 3.85mm ~ 43.06mm |
| Iris | F1.8 ~ F3.56 |
| Minimum Illumination | 0.05Lux (F1.8, AGC ON) |
| Digital Noise Reduction (DNR) | 2D & 3D Digital Noise Reduction |
| Networking Protocol | TCP/IP, RTSP, RTMP, ONVIF, GB/T28181 |
| Pan Rotation | -170 ~ 170° |
| Tilt Rotation | -30 ~ 90° |
| Power Supply | Input: 100 ~ 220 VAC Output: DC 12V, 2.5A |
| Power Consumption | 18W (max) |
| Temperature | 14 ~ 122°F (-10 ~ 50°C) |
| Humidity | 20 ~ 80% |
| Product Dimensions | 6.8" (173mm) x 6.2" (158mm) x 7.9" (201mm) |
| Product Weight | 5.5 lbs (2.5kg) |
