• Single-cable connection using HDBaseT
• Advanced ISP algorithm and face detection for precise auto-tracking without any setup
• Exceptional image quality with 4K resolution and 12x optical zoom
• Smooth and quiet PTZ movement
• 255 programmable presets for near-limitless customization
• Included receiver features HDMI, USB 3.0, LAN, RS232, IR, and Audio In & Out

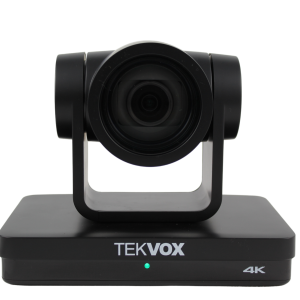

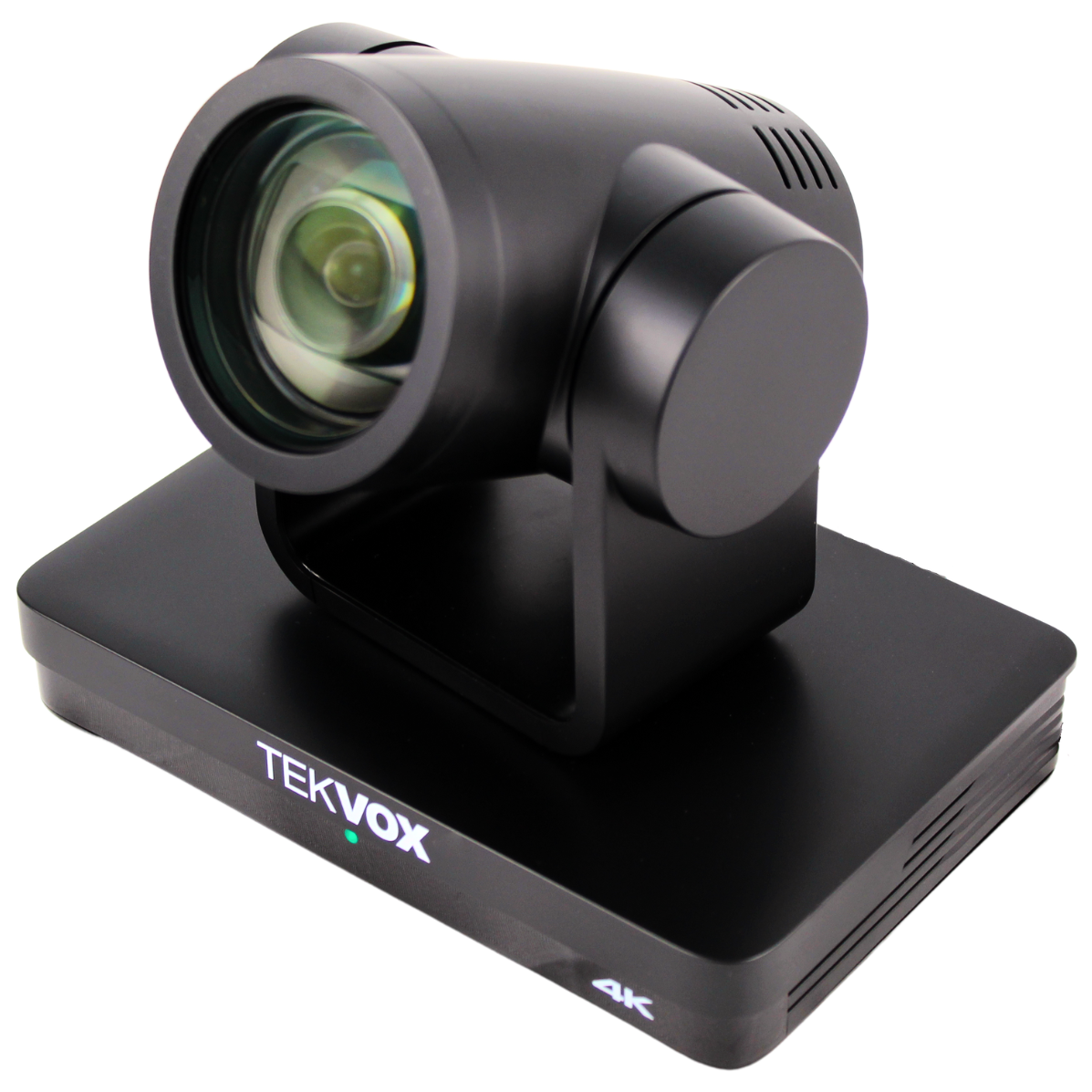

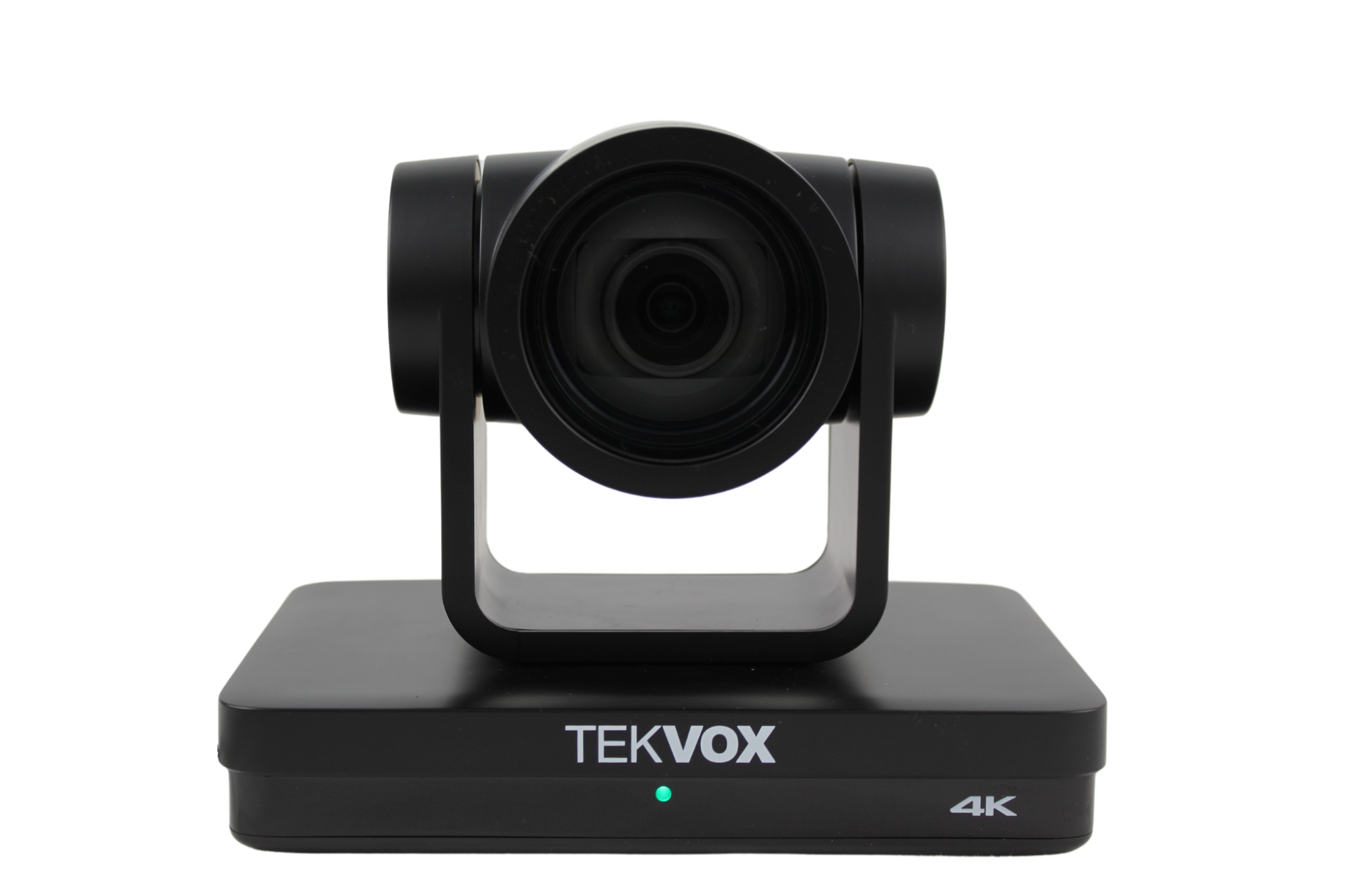

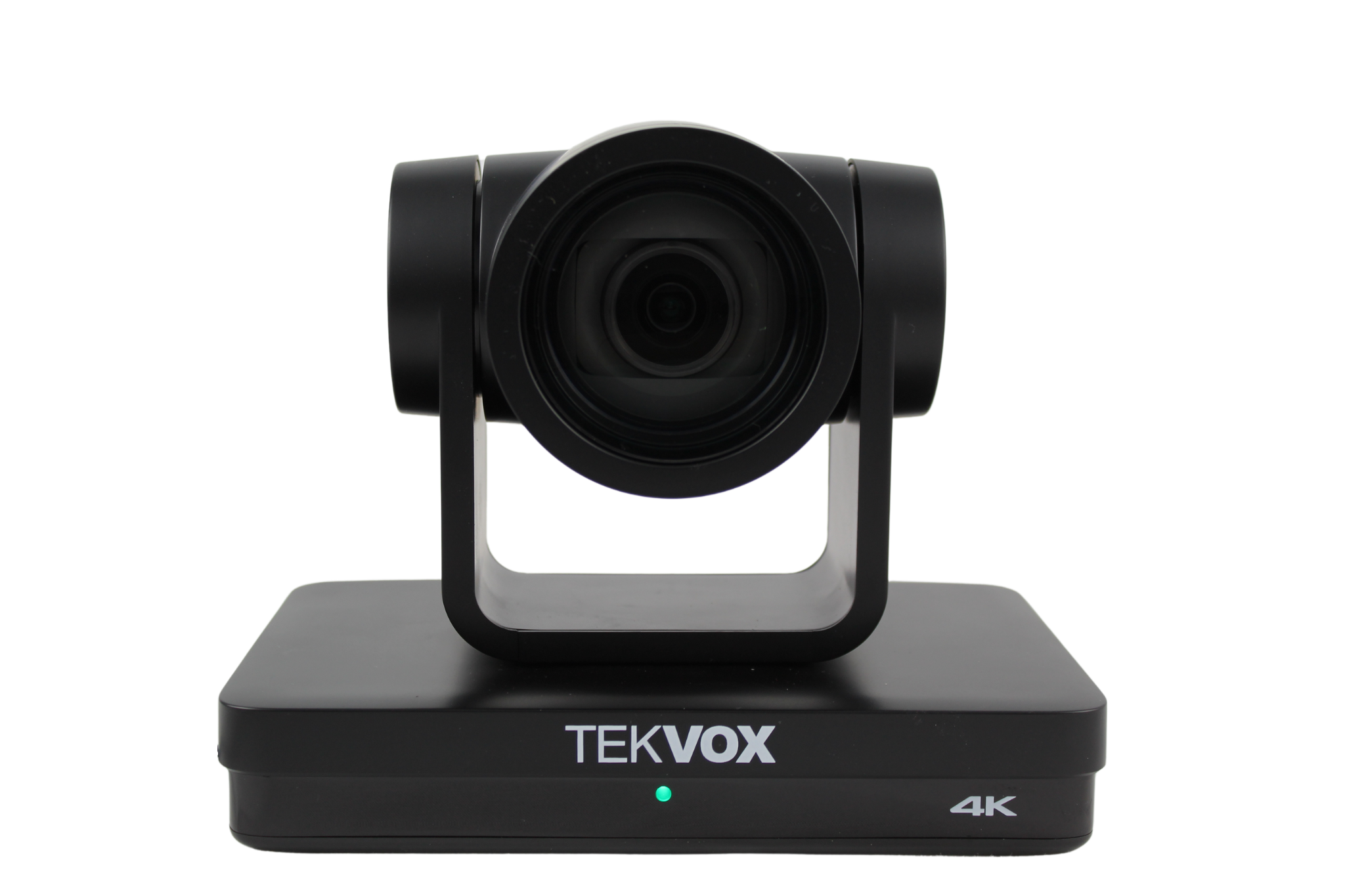

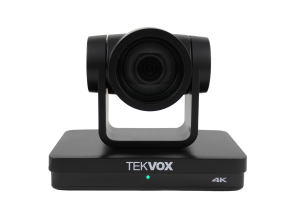

The 79068-Ultra 4K HDBaseT PTZ Camera Kit provides high-quality video and audio for various applications, including online education, lecture capture, and video conferencing. With its advanced ISP processing technology and multiple control protocols, the 79068-Ultra ensures a vivid and realistic image, excellent performance, and rich interface options for a seamless user experience.
| Camera Specifications | Details |
|---|---|
| Image Sensor | 8.29M megapixel, 1/2.8 inch high-quality SONY CMOS sensor |
| Minimum Illumination | 0.5 Lux (F1.8, AGC On) |
| Lens | 12x zoom (optical), 15x zoom (digital) |
| Focus | Auto / Manual / One-Push Trigger / PTZ Trigger |
| Focal Length | 3.5 ~ 42mm ± 5% |
| Aperture | F1.8 ~ F11, CLOSE |
| Field of View (FOV) | 80° (wide) ~ 8° (tele) |
| PTZ Movement Range | Pan: -170° ~ +170° Tilt: -30° ~ +90° |
| PTZ Movement Speed | Pan: -0.1°/s ~ 35°/s Tilt: 0.1°/s ~ 30°/s |
| Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W Mode, Gamma Curve |
| Image Auto Adjustment | Backlight Compensation (BLC), Wide Dynamic Range (WDR), 2D & 3D Noise Reduction (NR) |

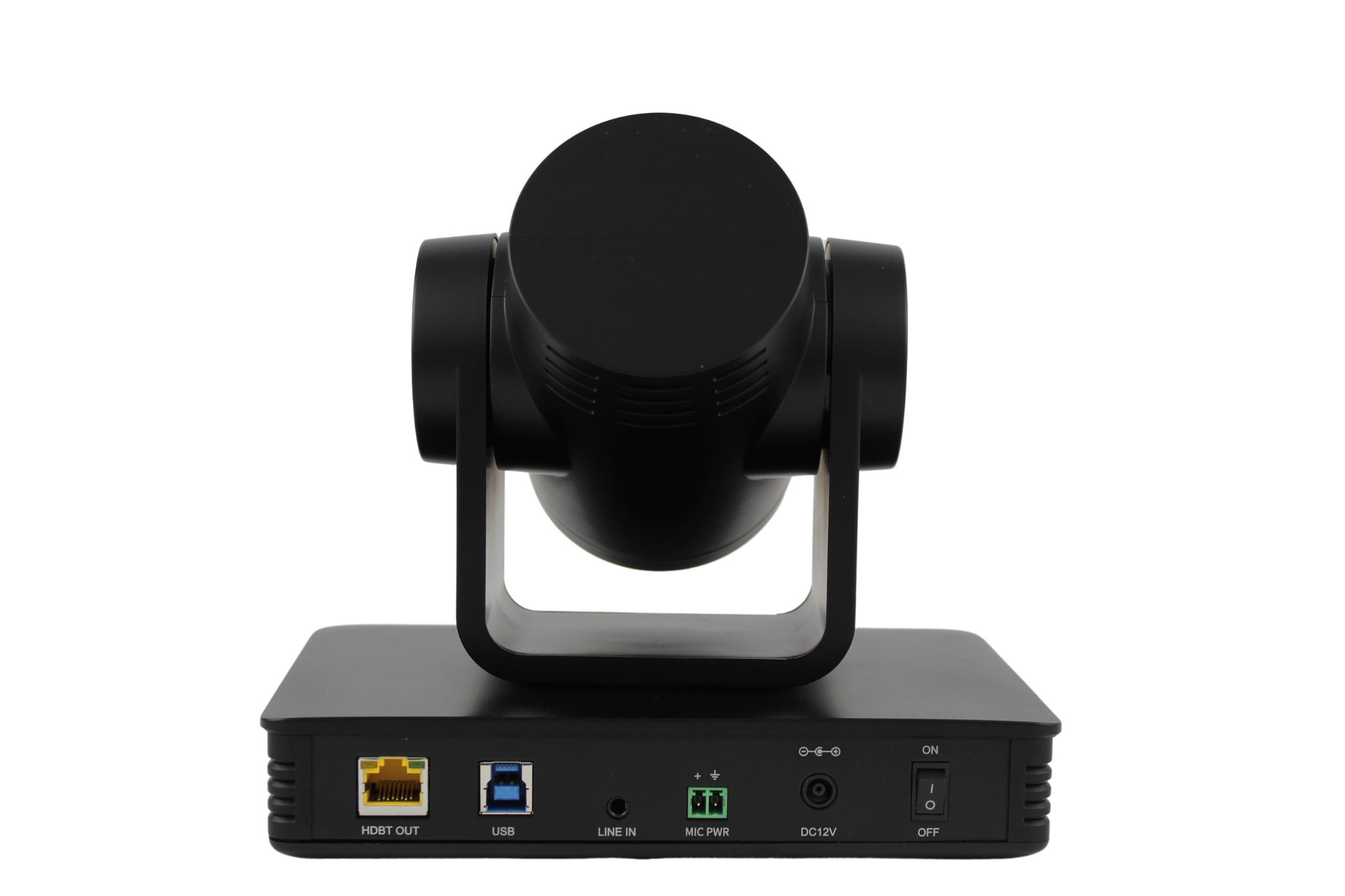

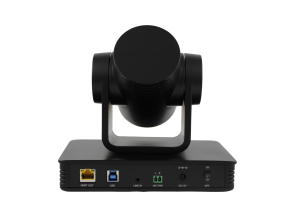

| Interfaces (Camera) | 1x HDBaseT Out (RJ45, Female) 1x USB Out (USB 3.0, Type-B, Female) 1x Line In (3.5mm mini jack, Female) 1x Mic Power (2-Pin Phoenix) 1x DC 12V |

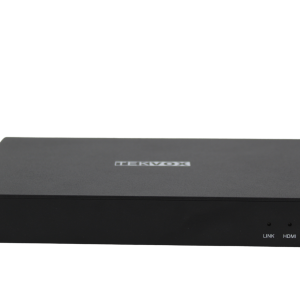

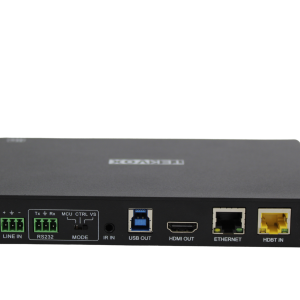

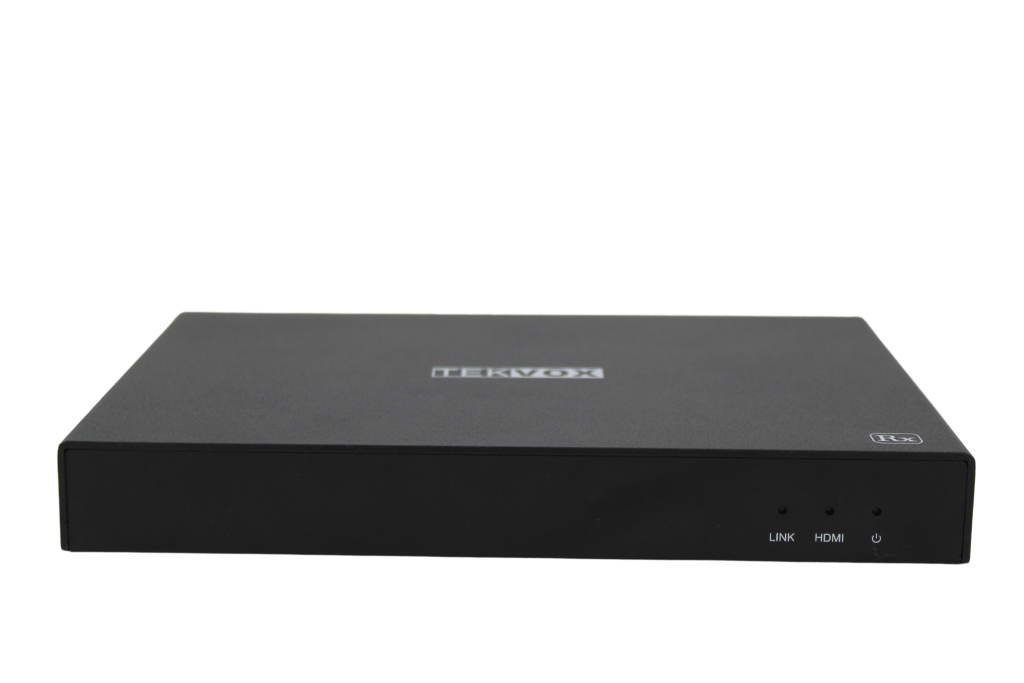

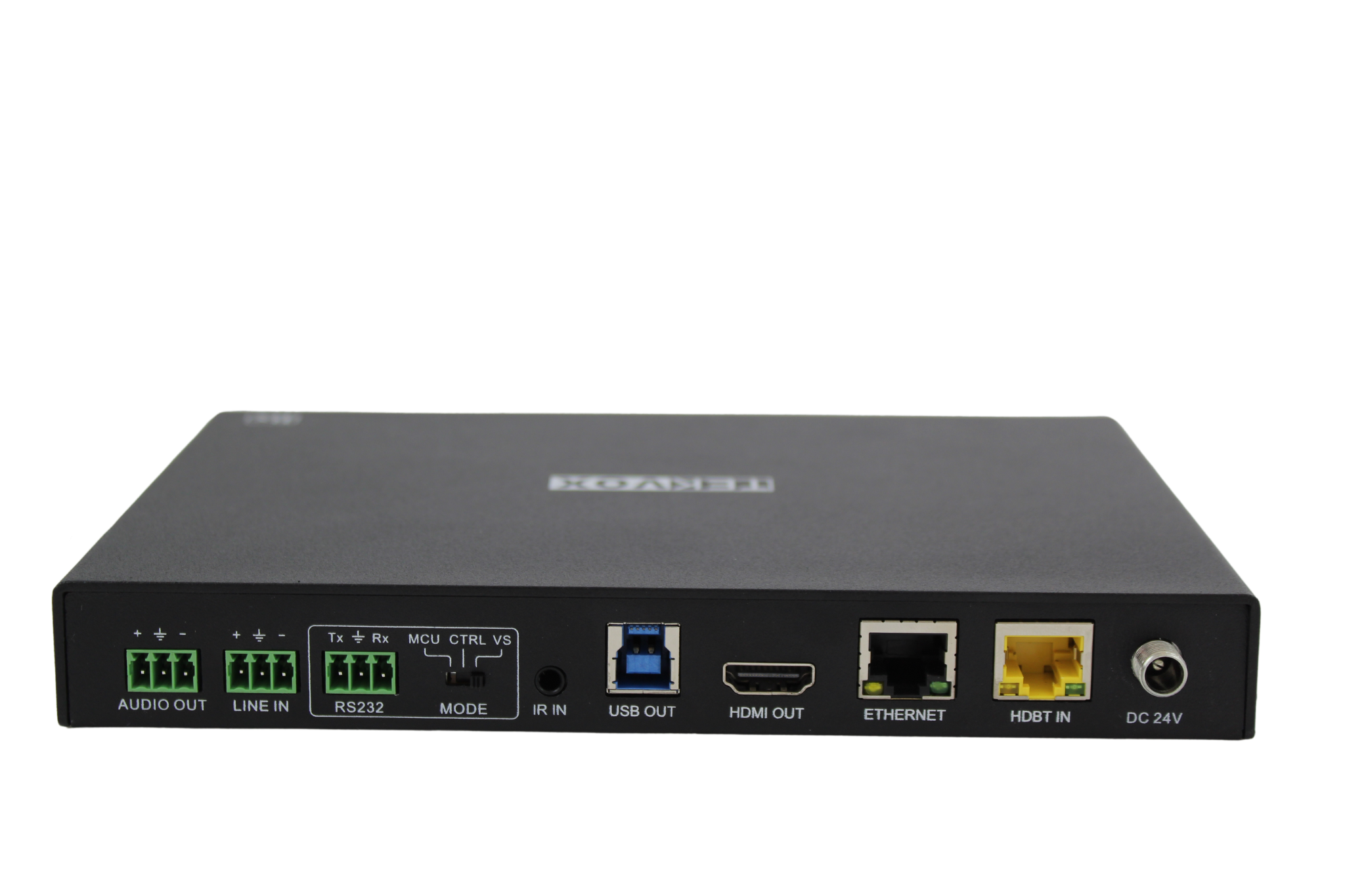

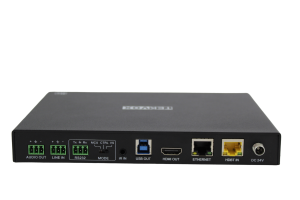

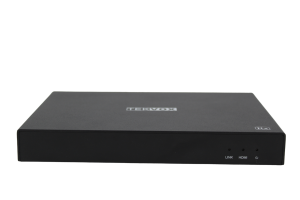

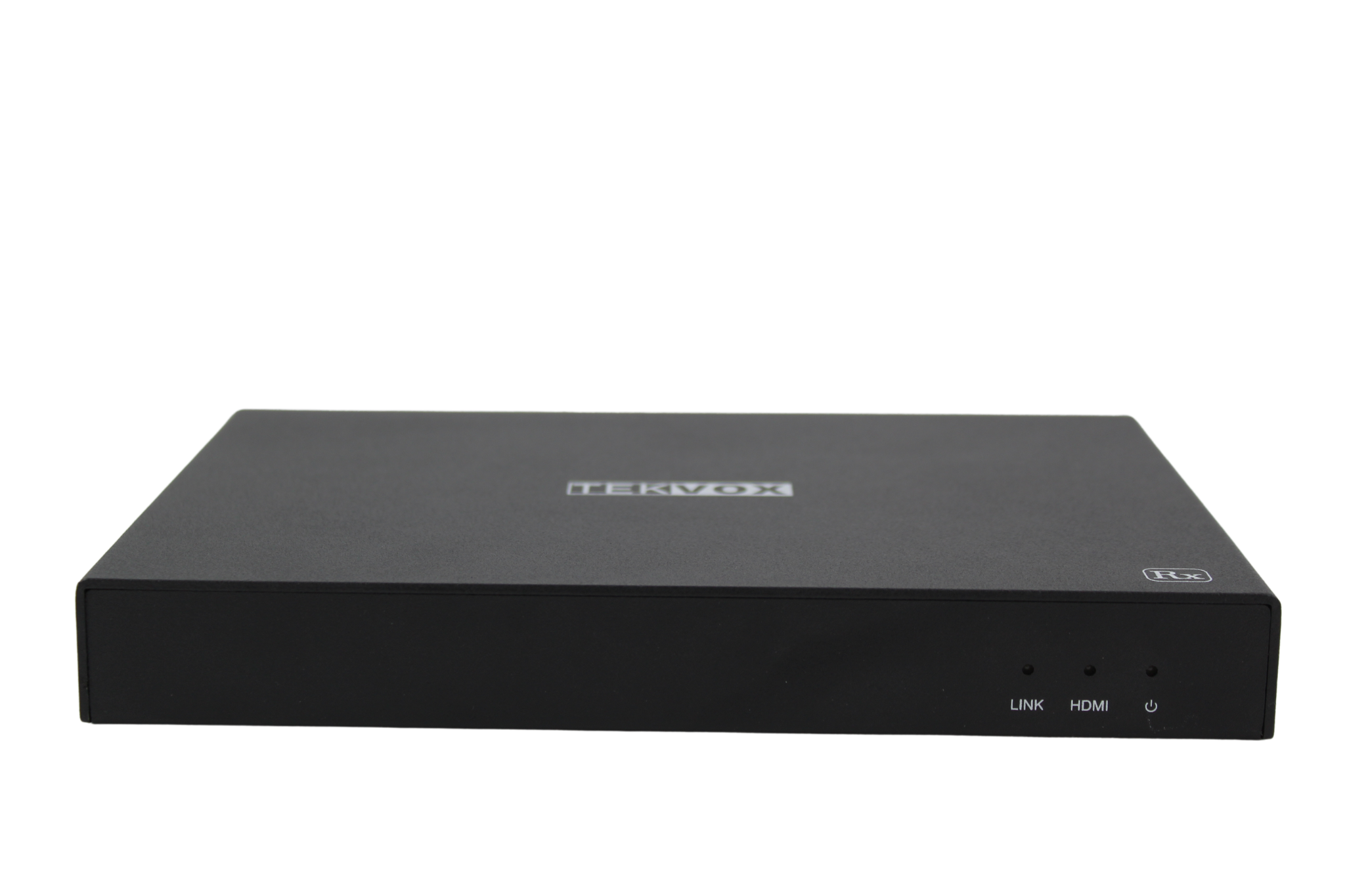

| Interfaces (Receiver) | 1x HDBaseT In (RJ45, Female) 1x Ethernet (10M/100Mbps, Default IP 192.168.5.163) 1x HDMI Out (19-Pin, Female) 1x USB Out (USB 3.0, Type-B, Female) 1x IR In (3.5mm mini jack, Female) 1x Line In (3-Pin Phoenix, Balanced Mono) 1x Audio Out (3-Pin Phoenix, Balanced Mono) |
| Input Resolution | HDBaseT: Up to 4Kx2K @ 60Hz 4:2:0 |
| Video Compression | MJPG, H264/265, YUY2, NV12 |
| Output Resolution | HDMI: Up to 4Kx2K @ 30Hz 4:4:4 USB: Up to 1280x720 @ 30Hz |
| Line Level | 10 dBV with max level of 6 dBV |
| Power Supply | DC 24V, 2.7A |
| Power Consumption | 12W (max) |
| Receiver Dimensions | 7.69 in. (195mm) x 5.31 in. (135mm) x 1 in. (25mm) |
| Receiver Weight | 0.98 lbs. (446 g) |
| Storage Temperature | 14° F ~ 158° F (-10° C ~ +70° C), 20% ~ 95% humidity |
| Operating Temperature | 14° F ~ 122° F (-10° C ~ +50° C), 20% ~ 80% humidity |
| Network Protocols | RTSP, RTMP, ONVIF, GB/T2818414, VISCA IP (Port #1259), RTMPS, SRT |
| Network Control Protocols | VISCA / PELCO-D / PELCO-P Baud Rate: 115200 / 38400 / 9600 / 4800 / 2400 |
| USB Protocols | UVC (Video), UAC (Audio) |
| Camera Dimensions | 7.13 in. (181mm) x 4.5 in. (115mm) x 5.83 in. (148mm) |
| Camera Weight | 2.75 lbs. (1.25 kg) |
