SCU21T-KVM 2×1 HDMI/USB-C BYOM Switcher

SKU: 79121-KVM

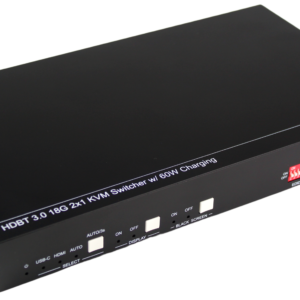

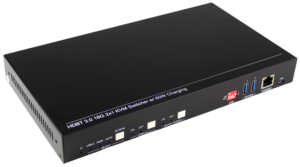

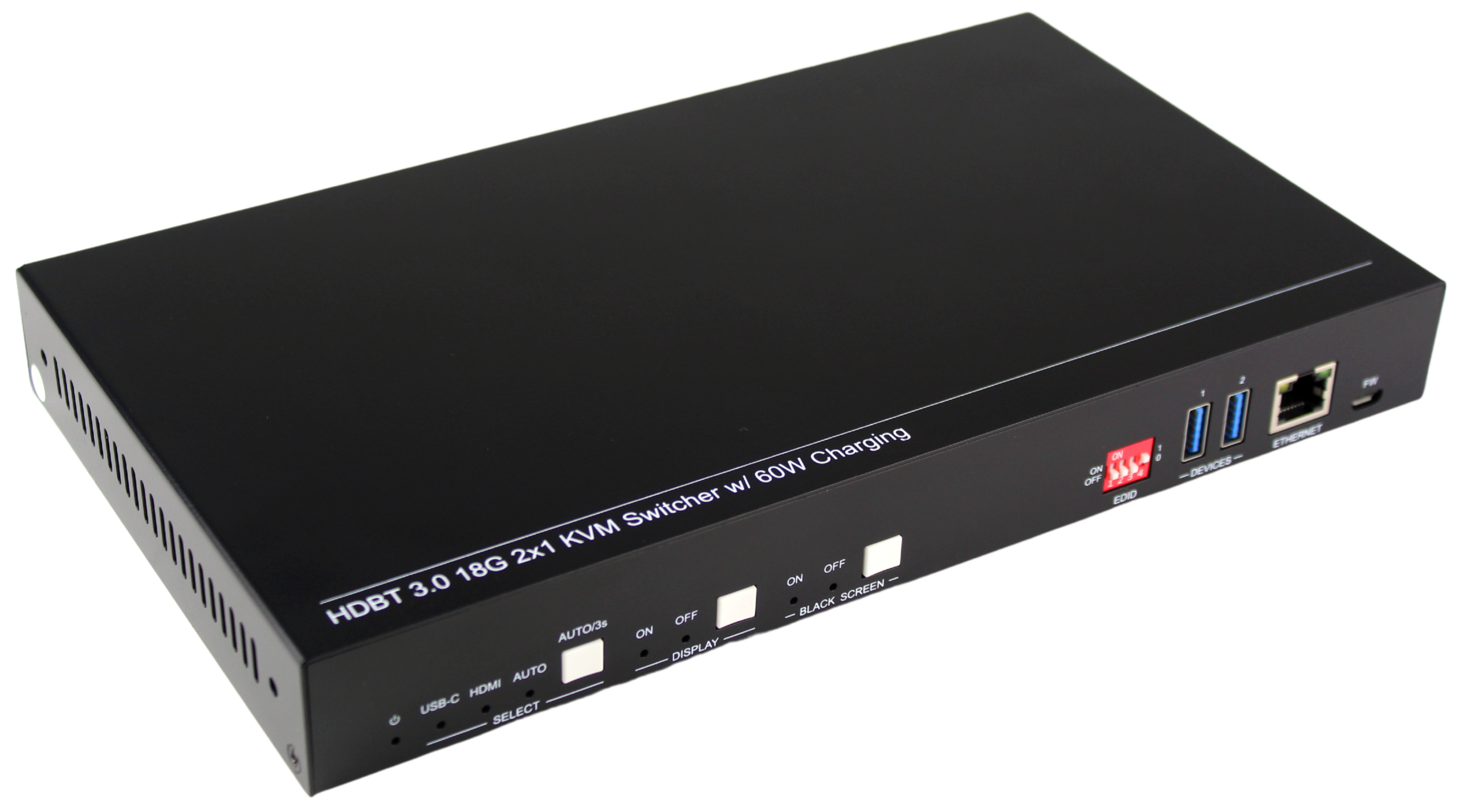

79121-KVM-TX_1 zoom

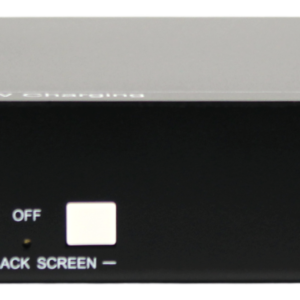

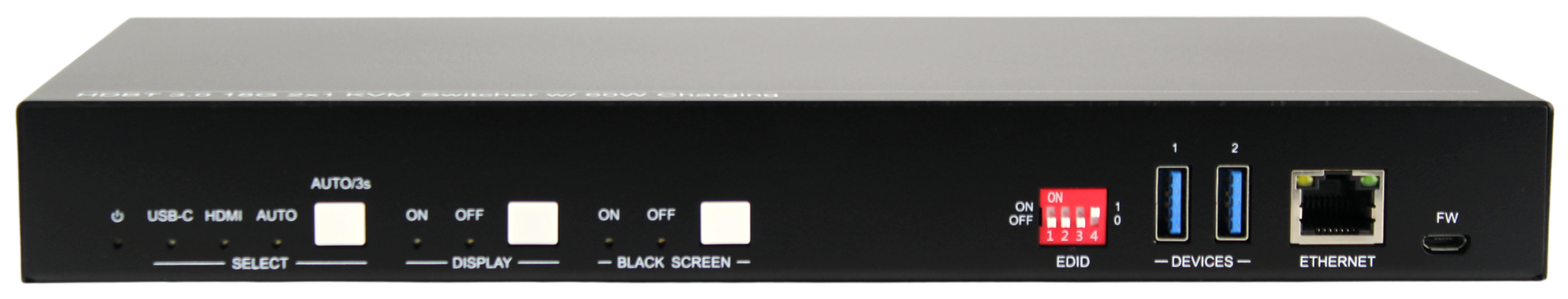

79121-KVM-TX_front zoom

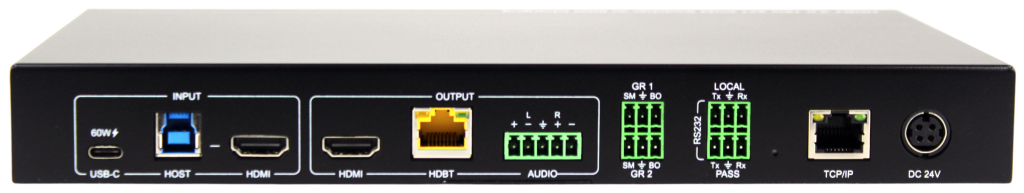

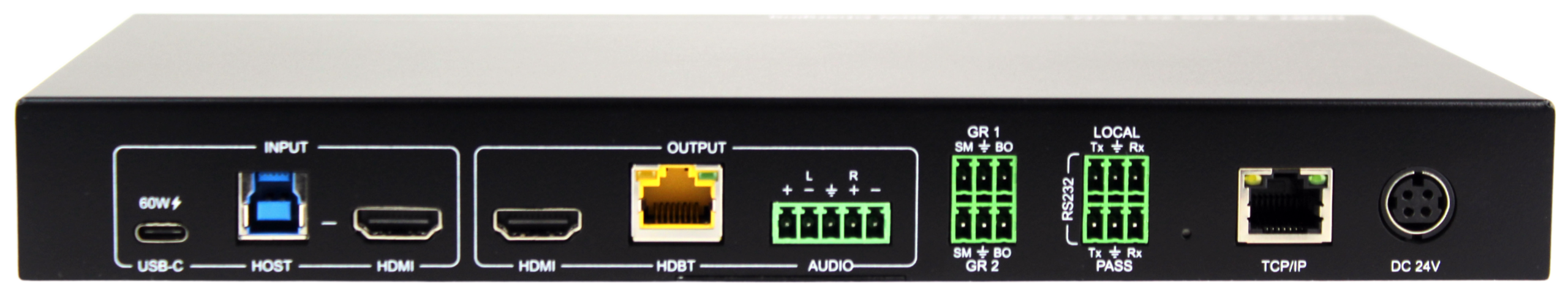

79121-KVM-TX_back zoom

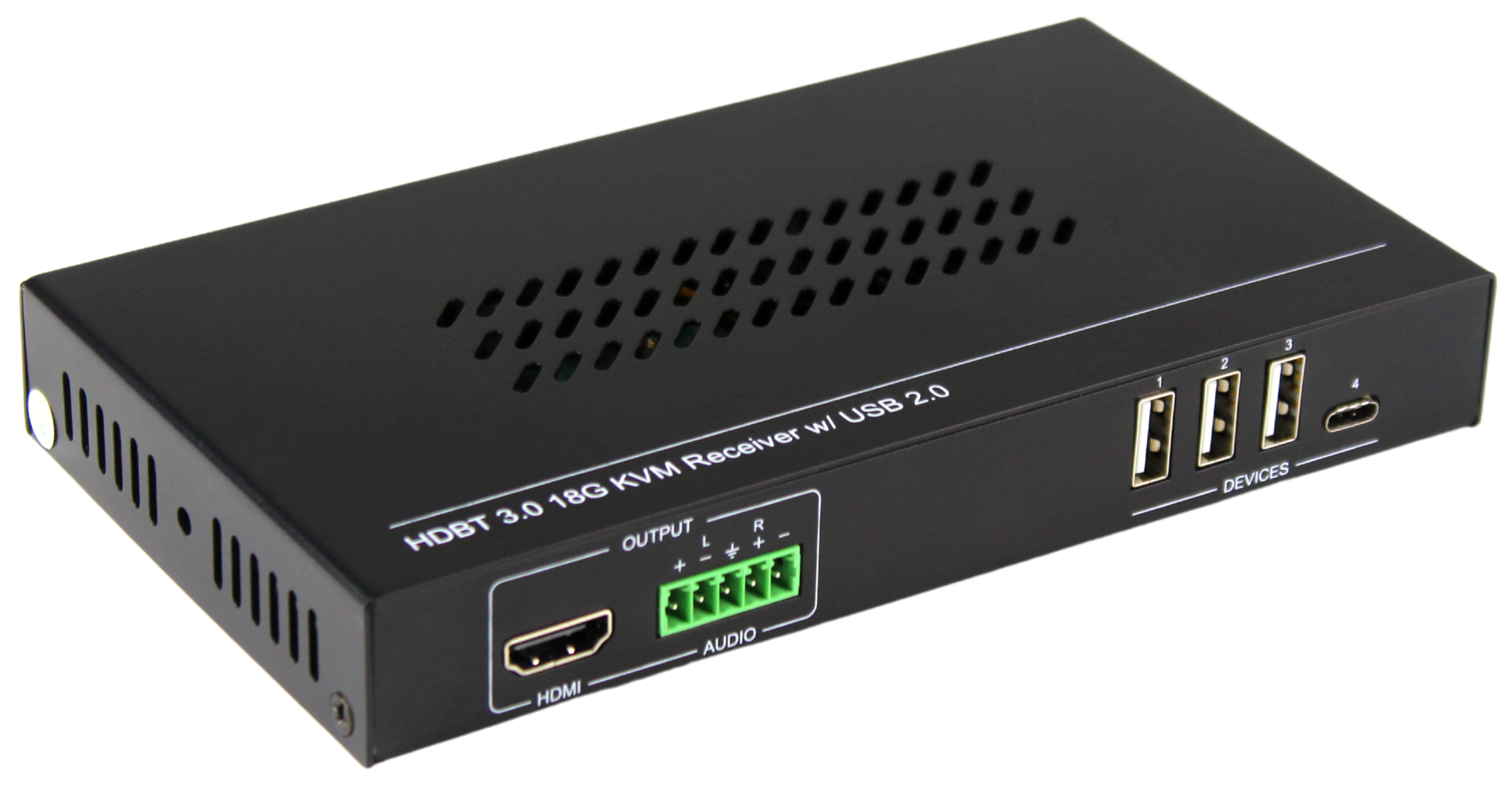

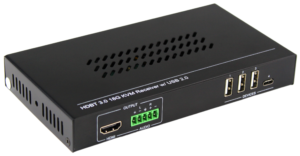

79121-KVM-RX_1 zoom

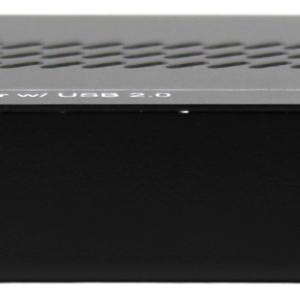

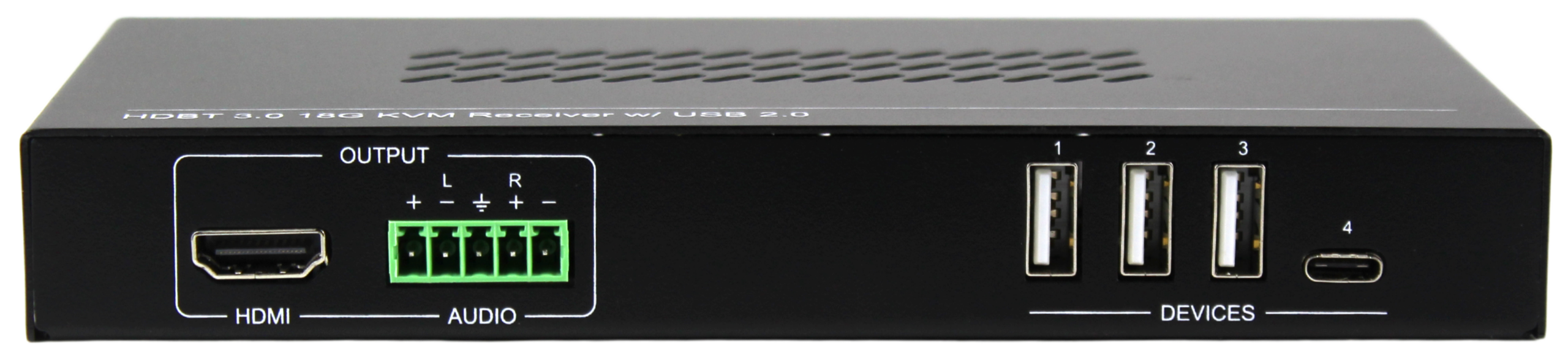

79121-KVM-RX_front zoom

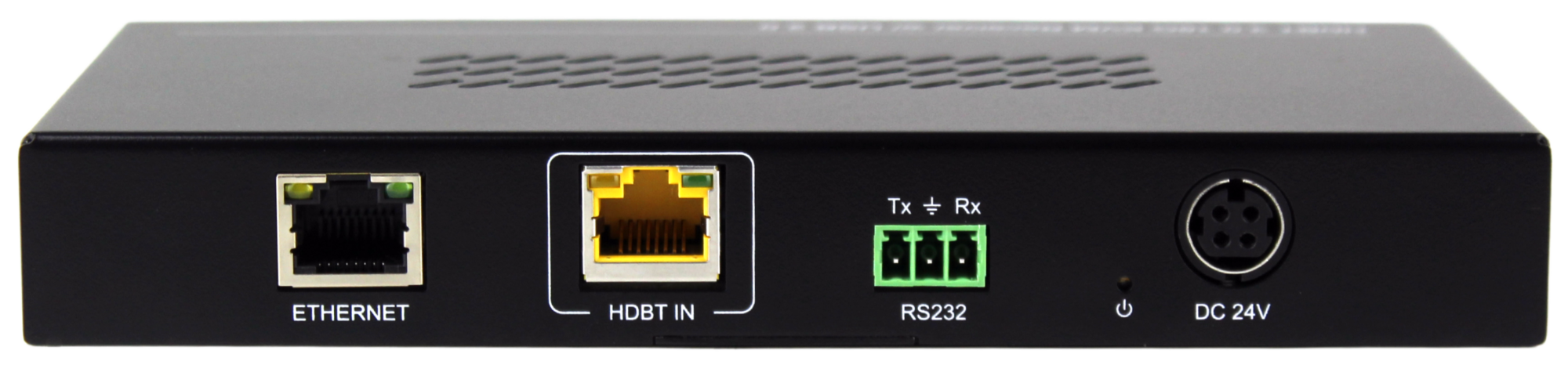

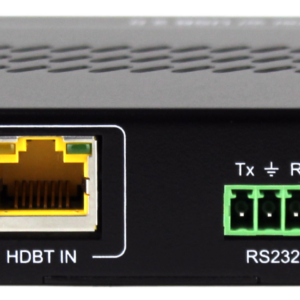

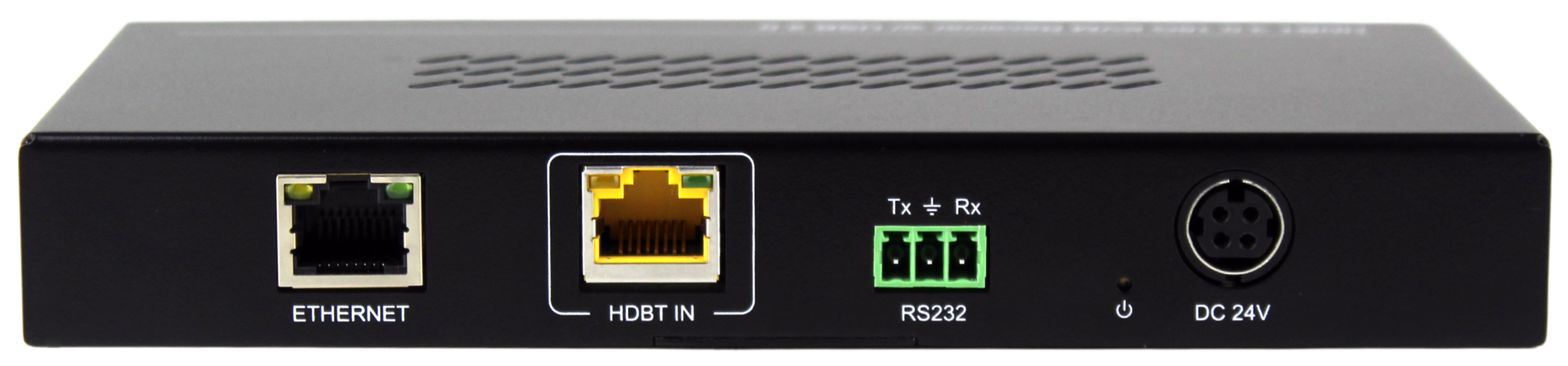

79121-KVM-RX_back zoom
79121-KVM-TX_1
79121-KVM-TX_front
79121-KVM-TX_back
79121-KVM-RX_1
79121-KVM-RX_front
79121-KVM-RX_back
Full Screen

Description

  • HDMI & USB-C inputs, with simultaneous HDMI & HDBaseT outputs
  • Dual (USB-B and USB-C) USB hosts for Bring-Your-Own-Meeting (BYOM)
  • Supports up to 4Kx2K resolution and automatic source detection & switching
  • Controllable via RS232, CEC, or front panel buttons
Buy on Dealer StoreContact a Sales Rep

Description

The SCU21T-KVM is a powerful 2×1 HDMI/USB-C switcher designed for professional-grade Bring-Your-Own-Meeting (BYOM). It offers automatic source detection and switching between its HDMI and USB-C inputs, and allows users to run video conferences from their own devices with remote access to far-end USB microphones and cameras via HDBaseT. The switcher also includes audio de-embedding for routing to an external amplifier, as well as compatibility with in-table grommets for easy connection. It supports resolutions up to 4Kx2K @ 60Hz 4:4:4, HDR10, and is controllable via RS232, CEC, front panel buttons, or in-table connection grommets.

Capable of seamless, versatile video conferencing over distances of up to 328 feet (100m), the SCU21T-KVM is perfect for adding BYOM to any size of conference room, promising excellent performance and a streamlined user experience.

SCU21T-KVM HDMI/USB-C BYOM Switcher Part Number: 79121-KVM
Transmitter Receiver
Video
Inputs 1 HDMI (19-pin, Female) 1 USB-C (Type C, Female) 1 HDBaseT (RJ45, Female)
Input Resolution HDMI: Up to 4Kx2K @ 60Hz 4:4:4, HDR10, Dolby Vision USB-C: Up to 4Kx2K @ 60Hz 4:4:4 Up to 4Kx2K @ 60Hz 4:2:0
Outputs 1 HDMI (19-pin, Female) 1 HDBaseT (RJ45, Female) 1 HDMI (19-Pin, Female)
Output Resolution HDMI: Up to 4Kx2K @ 60Hz 4:4:4, HDR10, Dolby Vision HDBaseT: Up to 4Kx2K @ 60Hz 4:2:0 Up to 4Kx2K @ 60Hz 4:4:4, HDR10, Dolby Vision
Compliances HDMI: Up to 2.0b HDCP: Up to 2.2
Audio
HDMI Embedded Audio Format LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ passthrough
Audio Output 1 Balanced Stereo (5-pin terminal block) 1 Balanced Stereo (5-pin terminal block)
Control
Control Ports 1 EDID Switch (4-pin DIP switch) 2 Device (USB 3.0, Type-A, Female) 1 Ethernet (RJ45, Female) 1 Firmware (Micro-USB, Female) 1 Host (USB 3.0, Type-B, Female) 2 Grommet (3-pin terminal block) 2 RS232 (3-pin terminal block) 1 TCP/IP (RJ45, Female) 3 Device (USB 2.0, Type-A, Female) 1 Device (USB 2.0, Type-C, Female) 1 Ethernet (RJ45, Female) 1 RS232 (3-pin terminal block)
General
Operating Temperature 23 ~ 131°F (-5 ~ 55°C)
Operating Humidity 10 ~ 90%
Power Supply Input: AC 100 ~ 240V, 50/60Hz Output: DC 24V, 5A
Power Consumption 76.5W (max)
USB-C Power Delivery 60W (max)
Product Dimensions 10.4" (265mm) x 5.9" (150mm) x 1.3" (32mm) 6.8" (173mm) x 3.7" (95mm) x 0.96" (24.5mm)
Product Weight 2.25 lbs. (1020g) 0.9 lbs. (410g)
Name
Category
Last Updated
Download

79121-KVM Data Sheet

Data Sheets
04/07/2022
Data Sheets

79121-KVM User Manual

Manuals
04/13/2022
Manuals

TekFlex-32 Flexible Matrix

SKU: 79202

TFX-OBT+ 4K HDBaseT 100m PoE Output Card

SKU: 79263

TFX-IBT+ 4K HDBaseT 100m PoE Input Card

SKU: 79253

TFX-ISD SDI Input Card with Loop Output

SKU: 79214
Summary

The SCU21T-KVM is a powerful 2x1 HDMI/USB-C switcher designed for professional-grade Bring-Your-Own-Meeting (BYOM). It offers automatic source detection and switching between its HDMI and USB-C inputs, and allows users to run video conferences from their own devices with remote access to far-end USB microphones and cameras via HDBaseT. The switcher also includes audio de-embedding for routing to an external amplifier, as well as compatibility with in-table grommets for easy connection. It supports resolutions up to 4Kx2K @ 60Hz 4:4:4, HDR10, and is controllable via RS232, CEC, front panel buttons, or in-table connection grommets.

Capable of seamless, versatile video conferencing over distances of up to 328 feet (100m), the SCU21T-KVM is perfect for adding BYOM to any size of conference room, promising excellent performance and a streamlined user experience.

Specifications
SCU21T-KVM HDMI/USB-C BYOM Switcher Part Number: 79121-KVM
Transmitter Receiver
Video
Inputs 1 HDMI (19-pin, Female) 1 USB-C (Type C, Female) 1 HDBaseT (RJ45, Female)
Input Resolution HDMI: Up to 4Kx2K @ 60Hz 4:4:4, HDR10, Dolby Vision USB-C: Up to 4Kx2K @ 60Hz 4:4:4 Up to 4Kx2K @ 60Hz 4:2:0
Outputs 1 HDMI (19-pin, Female) 1 HDBaseT (RJ45, Female) 1 HDMI (19-Pin, Female)
Output Resolution HDMI: Up to 4Kx2K @ 60Hz 4:4:4, HDR10, Dolby Vision HDBaseT: Up to 4Kx2K @ 60Hz 4:2:0 Up to 4Kx2K @ 60Hz 4:4:4, HDR10, Dolby Vision
Compliances HDMI: Up to 2.0b HDCP: Up to 2.2
Audio
HDMI Embedded Audio Format LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ passthrough
Audio Output 1 Balanced Stereo (5-pin terminal block) 1 Balanced Stereo (5-pin terminal block)
Control
Control Ports 1 EDID Switch (4-pin DIP switch) 2 Device (USB 3.0, Type-A, Female) 1 Ethernet (RJ45, Female) 1 Firmware (Micro-USB, Female) 1 Host (USB 3.0, Type-B, Female) 2 Grommet (3-pin terminal block) 2 RS232 (3-pin terminal block) 1 TCP/IP (RJ45, Female) 3 Device (USB 2.0, Type-A, Female) 1 Device (USB 2.0, Type-C, Female) 1 Ethernet (RJ45, Female) 1 RS232 (3-pin terminal block)
General
Operating Temperature 23 ~ 131°F (-5 ~ 55°C)
Operating Humidity 10 ~ 90%
Power Supply Input: AC 100 ~ 240V, 50/60Hz Output: DC 24V, 5A
Power Consumption 76.5W (max)
USB-C Power Delivery 60W (max)
Product Dimensions 10.4" (265mm) x 5.9" (150mm) x 1.3" (32mm) 6.8" (173mm) x 3.7" (95mm) x 0.96" (24.5mm)
Product Weight 2.25 lbs. (1020g) 0.9 lbs. (410g)
Downloads
Name
Category
Last Updated
Download

79121-KVM Data Sheet

Data Sheets
04/07/2022
Data Sheets

79121-KVM User Manual

Manuals
04/13/2022
Manuals
