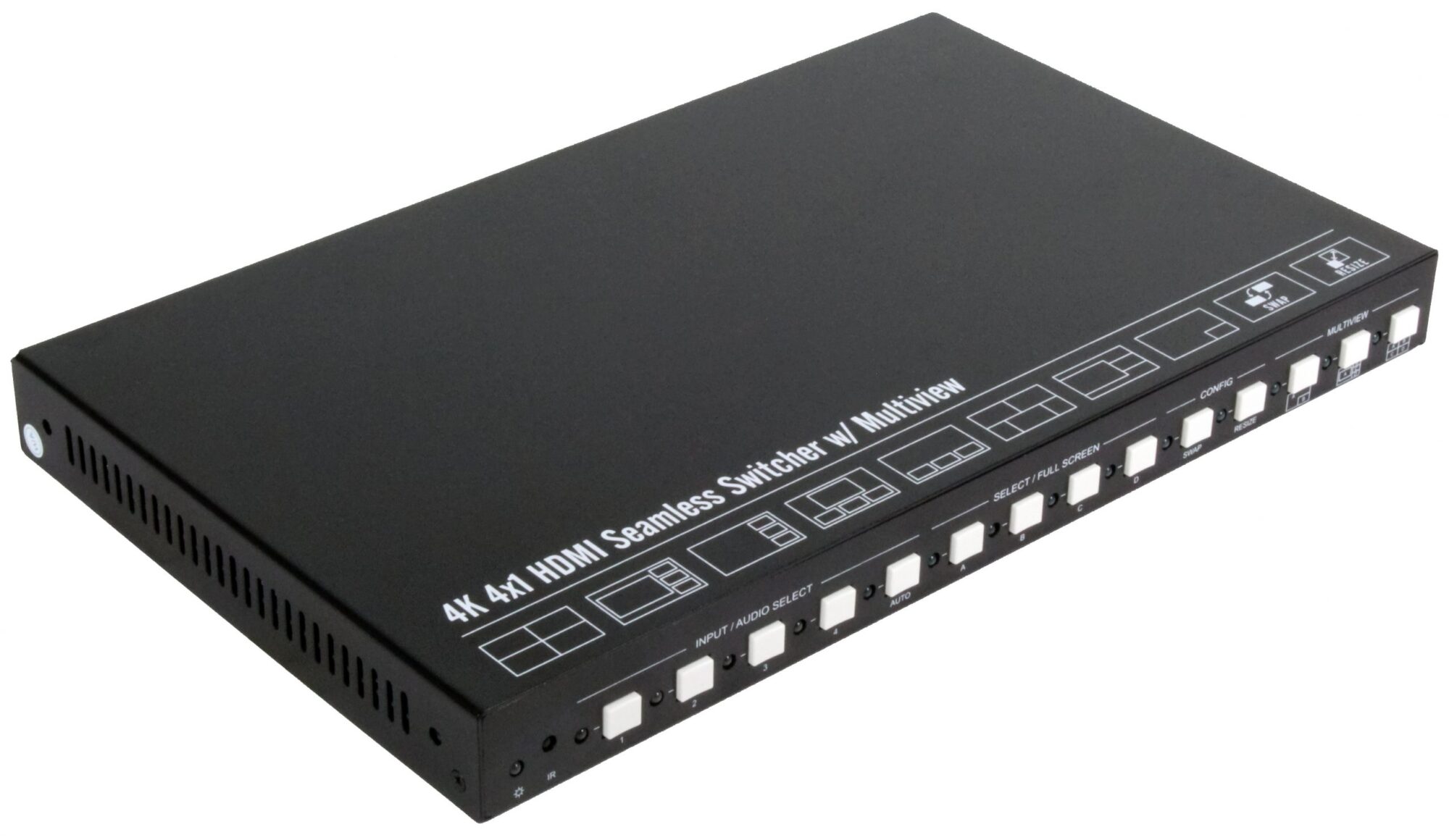

MV41+ 4K HDMI Multiview Switcher

SKU: 79141-MV

79141-MV_1 zoom

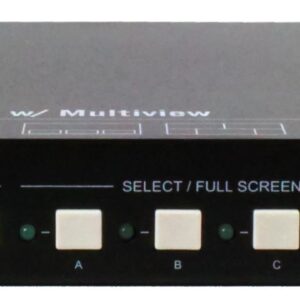

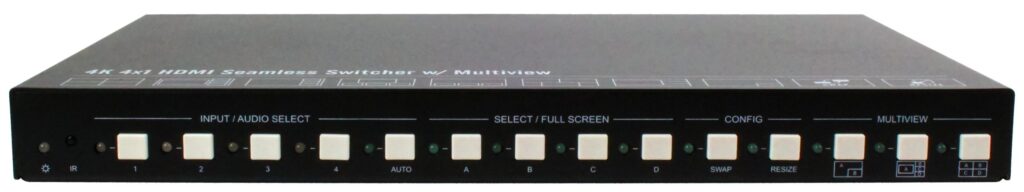

79141-MV_front zoom

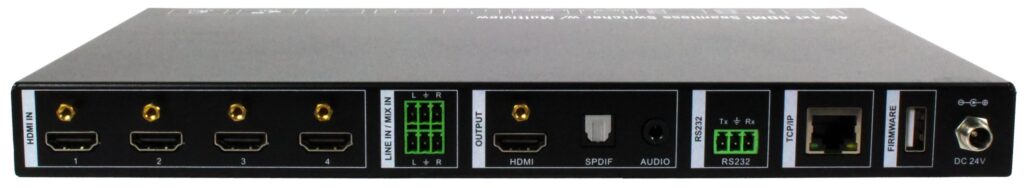

79141-MV_back zoom
79141-MV_1
79141-MV_front
79141-MV_back
Full Screen

Description

  • Supports up to 4K resolutions and includes auto-scaling on all inputs
  • Audio embedding, mixing, and de-embedding
  • Flexible multiview with 16 pre-defined layouts and 3 possible window sizes
  • Automatic source detection and switching
  • Controllable via front panel buttons, RS232, or TCP/IP w/ web GUI

Description

TEKVOX’s MV41+ is a sophisticated, seamless HDMI switcher with flexible multiview. The MV41+ has 4 HDMI inputs, each of which is equipped with auto-scaling to ensure universal compatibility with any device, and 1 HDMI output. It includes LINE and MIX audio inputs for audio embedding and mixing, and analog (AUDIO) and optical (SPDIF) outputs provide easy audio de-embedding for routing to an amplifier. The MV41+’s flexible multiview allows users to view multiple sources simultaneously, and includes sixteen pre-defined layouts & three window sizes, all of which are fully-customizable.

The MV41+ is controllable via its front panel buttons, RS232 commands, or TCP/IP commands via an easy-to-use web GUI, ensuring that it can function independently or fit perfectly into any control system. When in single-window mode, the MV41+ also brings automatic source-detection and switching to the table for convenient, hands-free operation.

With exceptional multiview, seamless switching—both manual and automatic—multiple control options, and support for dazzling 4K resolution, the MV41+ offers the sophistication and versatility for any application.

MV41+ 4K HDMI Multiview Switcher Part Number: 79141-MV
Video Inputs 4 HDMI In (Type-A, Female)
HDMI Input Resolution Up to 4K @ 30Hz
Video Output 1 HDMI Out (Type-A, Female)
HDMI Output Resolution Up to 4K @ 30Hz
Standards HDMI 1.4 Up to HDCP 2.2
Audio Inputs 1 LINE IN (Unbalanced stereo, 3-pin terminal block 1 MIX IN (Unbalanced stereo, 3-pin terminal block)
Frequency Response 20Hz ~ 20kHz, ±3dB
SPDIF Output 1 SPDIF (Toslink)
Max Output Level ±0.05dBFS
Frequency Response 20Hz ~ 20kHz, ±1dB
Audio Format PCM 2CH
Audio Output 1 AUDIO (3.5mm mini jack)
Frequency Response 20Hz ~ 20kHz, ±1dB
Noise -80dB
Control Ports 1 RS232 (3-pin terminal block) 1 TCP/IP (RJ45, Fmale)
Operating Temperature 23 ~ 131°F (-5 ~ 55°C)
Relative Humidity 10 ~ 90%
Power Supply Input: 100 ~ 240 VAC, 50/60Hz Output: DC 24V, 1.25A
Power Consumption 13W (max)
Product Dimensions 11.22" (285mm) x 1.06" (27mm) x 6.79" (172.5mm)
Product Weight 2.73 lbs. (1.24kg)
