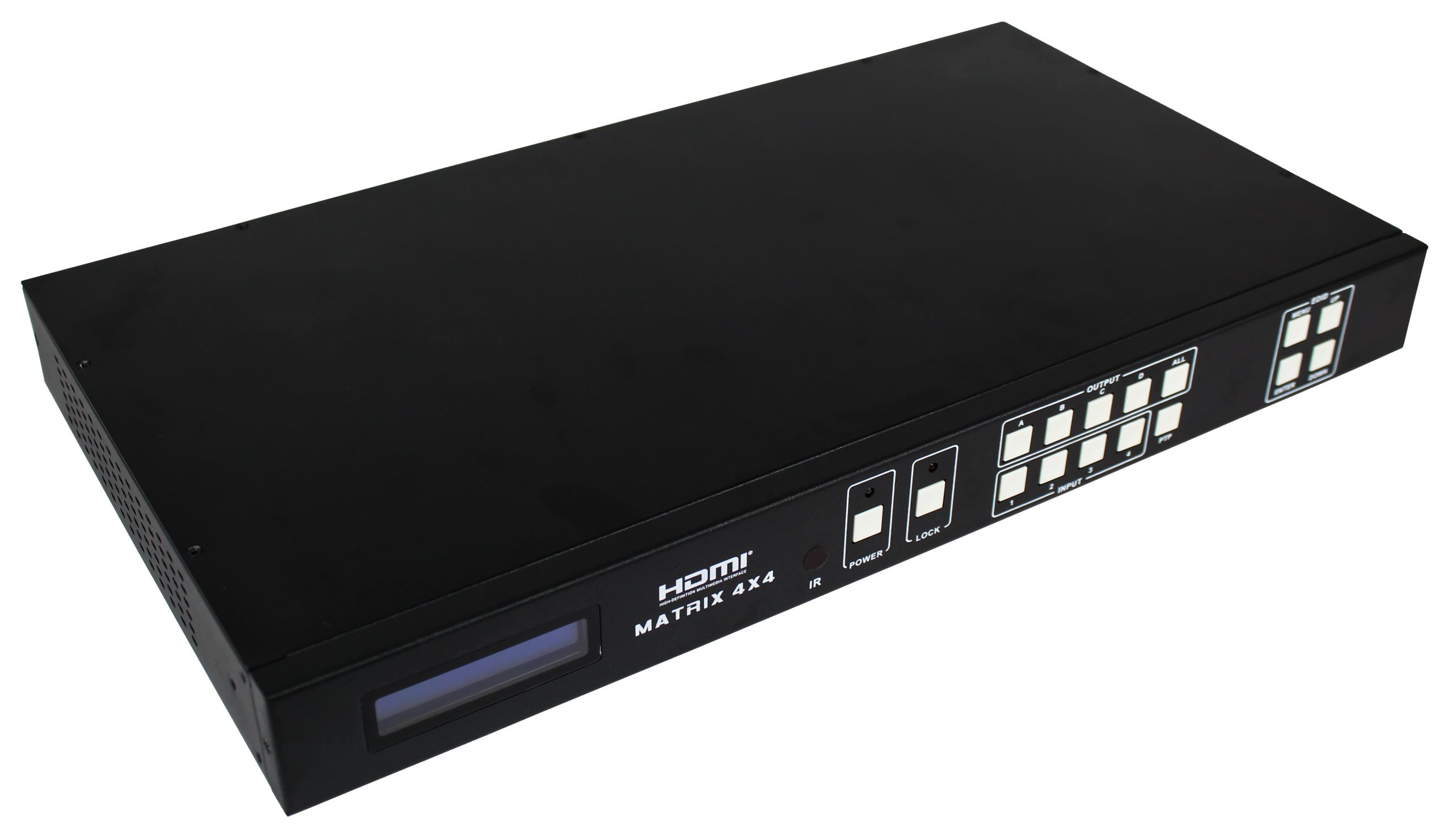

HDBaseT 4×4 Matrix Switcher

SKU: 79666

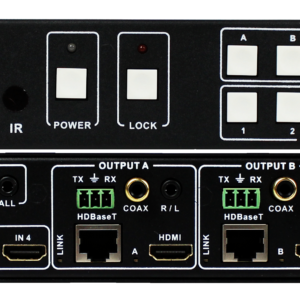

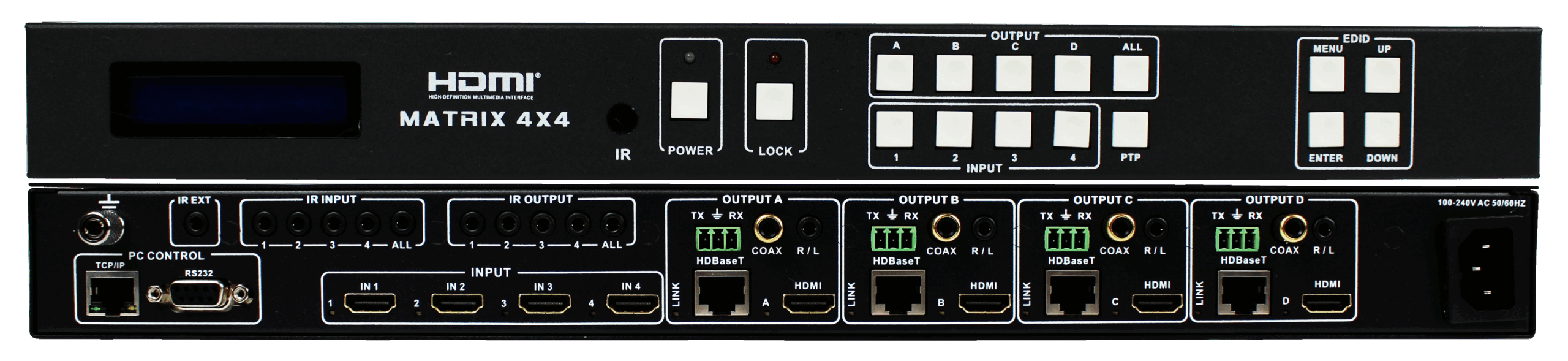

79055-H_frontback

79055-H_frontback

Description

Supports resolutions up to 4Kx2K@30Hz
HDBase-T outputs transmit video, audio, and control up to 230 ft
4 HDMI inputs, 4 mirrored HDBase-T and HDMI outputs
Supports LPCM7.1ch, Dolby TrueHD, Digital Plus & DTS-HD digital audio formats
Controllable via IR remote, RS232, TCP/IP & front panel buttons
1U rack-mountable form factor

Description

The 4×4 Matrix Switcher with simultaneous HDBaseT and HDMI outputs connects four HDMI sources to eight displays. This matrix features four HDMI outputs, with each HDMI output mirrored to provide a simultaneous HDBaseT output. Any source is routable to any display by selecting it via the supplied IR Remote Control, RS-232, TCP/IP, or by using the selection buttons on the front panel. This device supports High Definition Audio, 3D signal compatibility, and 4K resolution.

This switcher is the perfect, affordable option for home theater systems, sports bars, and more!

HDBaseT 4x4 Matrix	Part Number: 79666
Video Bandwidth	297 MHz
Supported Video Resolutions	480i, 576i, 480p, 576p, 720p, 1080i, 1080p24/30/50/60. 4Kx2K@30
Inputs	4x HDMI 5x IR Receivers 1x RS232 (Master) 1x RJ-45 (Control) 4x RS232
Outputs	4x HDBase-T 4x HDMI 4x IR Blaster
ESD Protection (Human-body Model)	± 8kV (Air-gap discharge) ± 4kV (Contact discharge)
Dimensions	17.3” (440mm) x 7.9 (200mm) x 1.7 (45mm)
Weight	4.0 lbs. (1820g)
Temperature	32 ~ 104°F (0 ~ 40°C)
Humidity	20 ~ 90%
Power Consumption	50W (max) 0.5W (standby)

Name

Category

Last Updated

Download

79666 4×4 Matrix Data Sheet

Data Sheets

03/20/2020
