Description

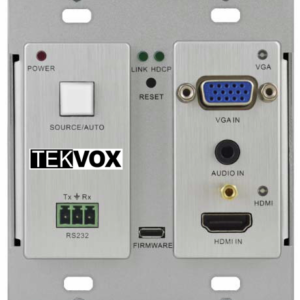

The TEK TPHD2-WP1 is a 2 gang Decora-style HDBaseT wall-mountable transmitter for HDMI or VGA/audio and RS232 at 230ft (70m) transmission with PoC . It supports auto-switching or button panel control between the inputs.
Description
- Integrated HDBaseT Lite technology
- 70m (230 ft) transmission with PoC function and bi-directional RS232 pass through
- Select either HDMI or VGA with audio input
- Built-in scaling function with output resolution up to 4K
- Switching controllable by remote control, passthrough, front panel buttons, or video detection
- Remotely powered via PoC from HDBaseT receiver, eliminating power supply
- LEDs for status checking and USB for firmware update
| TPHD2-WP1 Wall Plate Switcher | Part Number: 79066 |
|---|---|
| Video Inputs | 1 HDMI (Female) 1 VGA (15 Pin, Female) |
| Outputs | HDBaseT Lite (RJ45 Female) |
| Resolution Range | VGA: 800x600, 1024x768, 1280x800, 1280x1024, 1440x900, 1600x1200, 1920x1080, 1920x1200 HDMI: 4Kx2K, 1080P, 720P, 576P, 480P |
| Compliance | HDMI 1.4 & HDCP |
| Audio Input | 1 Stereo Audio (3.5mm mini jack) |
| Control Ports | 1 RS-232 (3 Pin Phoenix, Female) 1 RS-232 w/ Power (Rear Panel) |
| Transmission Distance | 1080P: 200 ft. (70m) 4Kx2K: 130 ft. (40m) |
| Power Supply | DC 12V, 2A |
| Power Consumption | 9.6W (max) |
| Temperature | 14 ~ 104°F (-10 ~ 40°C) |
| Humidity | 10% ~ 90% |
| Style | Decora 2-gang Wall or Floor Box |
| Case Dimensions | 4.1"(104mm) x 3.5"(89mm) x 1.7"(43mm) |
| Product Weight | 0.64 lbs. (290g) |
